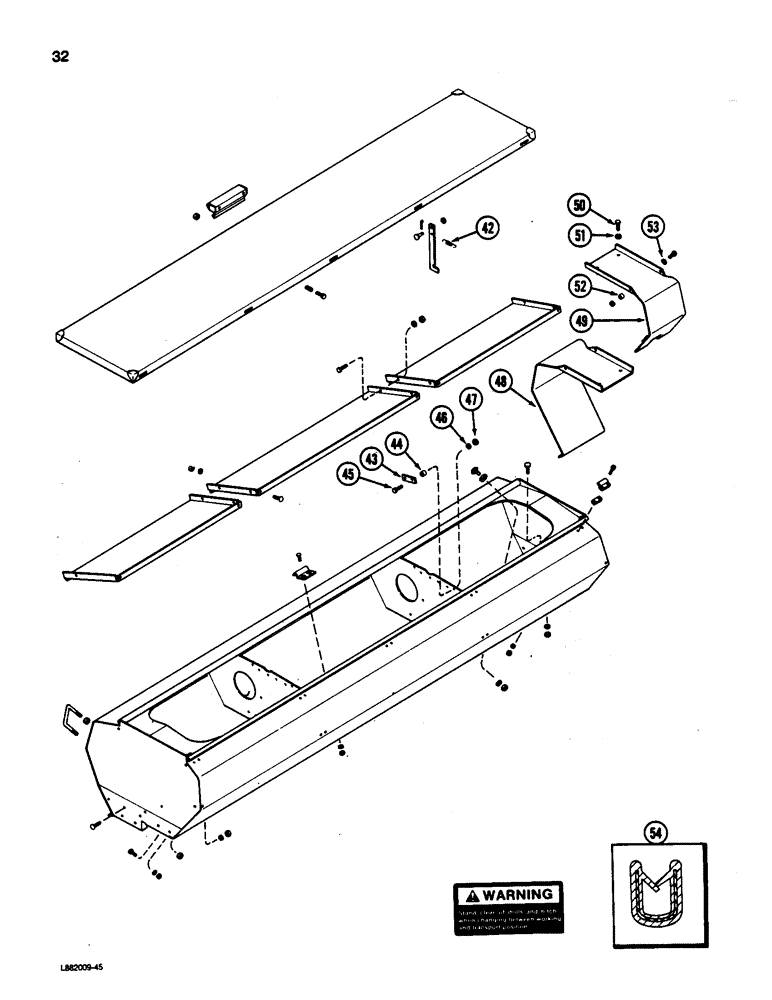

Запчасти Case IH 5200 (32) - HOPPER, GRAIN AND FERTILIZER, 20 FOOT DRILL

42

398304R1

SPRING

- return

4шт.

43

815178C1

SPACER

SUPPORT - arm retaining

4шт.

44

594536R1

BUSHING

- support

8шт.

45

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

8шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

47

120377

NUT,3/8" - 16, Gr 5

8шт.

48

91275C1

COVER

BRACE - hopper center filler, rear

1шт.

49

91277C1

COVER

BRACE - hopper center filler, front

1шт.

50

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

51

195-2030

WASHER,13/32" x 7/8" x .065"

- flat, 13/32 x 7/8 x 3/64 inch

4шт.

52

86224H

SPACER,1/4" Pipe x 3/8"

4шт.

53

21496R1

WASHER

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

54

NSS

NOT SOLD SEPARAT

MOULDING - protective guard (Order 196707C1, cut to desired length)

1шт.

196707C1

SEAL

MOULDING - protective guard, 50 foot

1шт.
