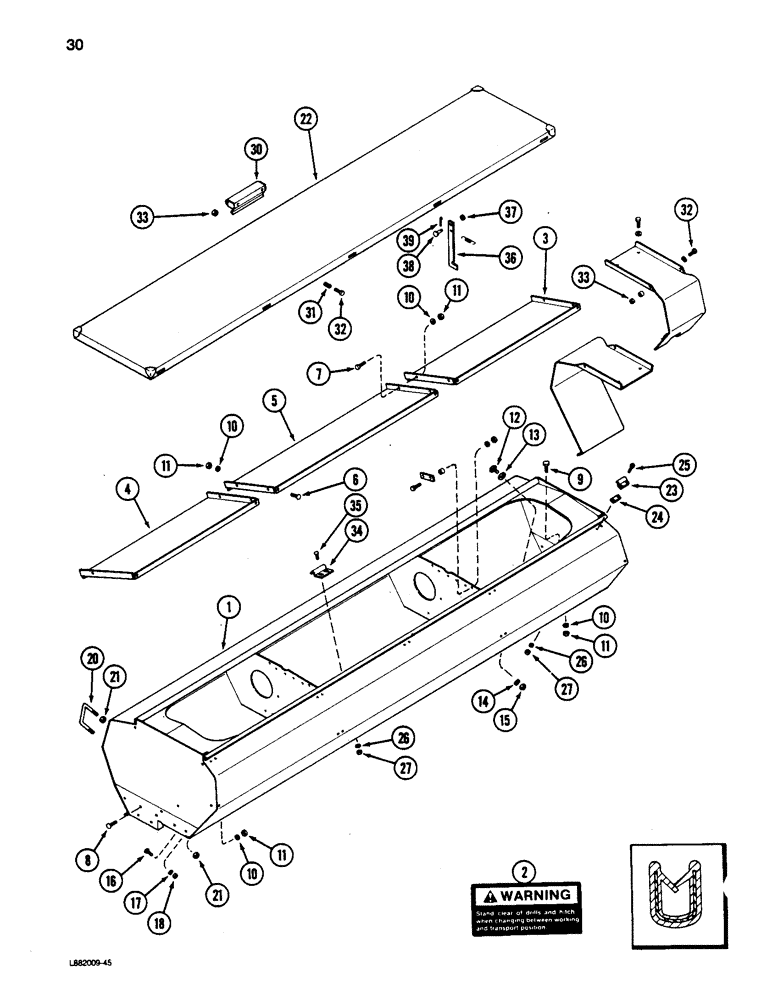

Запчасти Case IH 5200 (30) - HOPPER, GRAIN AND FERTILIZER, 20 FOOT DRILL, CONTINUED

1

90848C1

HOPPER

ASSEMBLY - grain and fertilizer

2шт.

2

1254170C1

DECAL

- caution

1шт.

3

815818C2

PANEL

- hopper, left

2шт.

4

815819C2

PANEL

- hopper, right

2шт.

5

815832C1

PANEL

- hopper, center

2шт.

6

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

120377

NUT,3/8" - 16, Gr 5

1шт.

12

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

4шт.

12

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

13

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

- square hole, 17/32 x 1 x 3/64 inch

4шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

129-107

NUT,5/8"-11, G5

1шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

12шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

12шт.

18

120375

NUT,Hex, 1/4" - 20, Gr 5

12шт.

20

811627C1

BOLT

U-BOLT - 5/8 inch NC

2шт.

21

124847

COLLAR

- hex jam, 5/8 inch NC

8шт.

22

815157C2

COVER

ASSEMBLY - hopper

2шт.

23

815173C1

HINGE

- cover

10шт.

24

97620C1

SHIM

- hinge

10шт.

25

160562

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

BOLT - pan head, 1/4 NC x 1 inch

20шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

27

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

30

815174C1

LATCH

- cover

2шт.

31

N32176

SPRING

- latc

4шт.

32

113-10

X

BOLT - hex, 5/16 NC x 1-1/4 inch

1шт.

33

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

1шт.

34

815175C1

CLIP

- latch

2шт.

35

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

4шт.

36

815176C1

ARM

- cover

4шт.

37

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

12шт.

38

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis

4шт.

39

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Continued on Page 33 3/32" x 1/2"

4шт.
