Запчасти Case IH 5200 (28) - HOPPER, GRAIN AND FERTILIZER, 15 FOOT DRILL

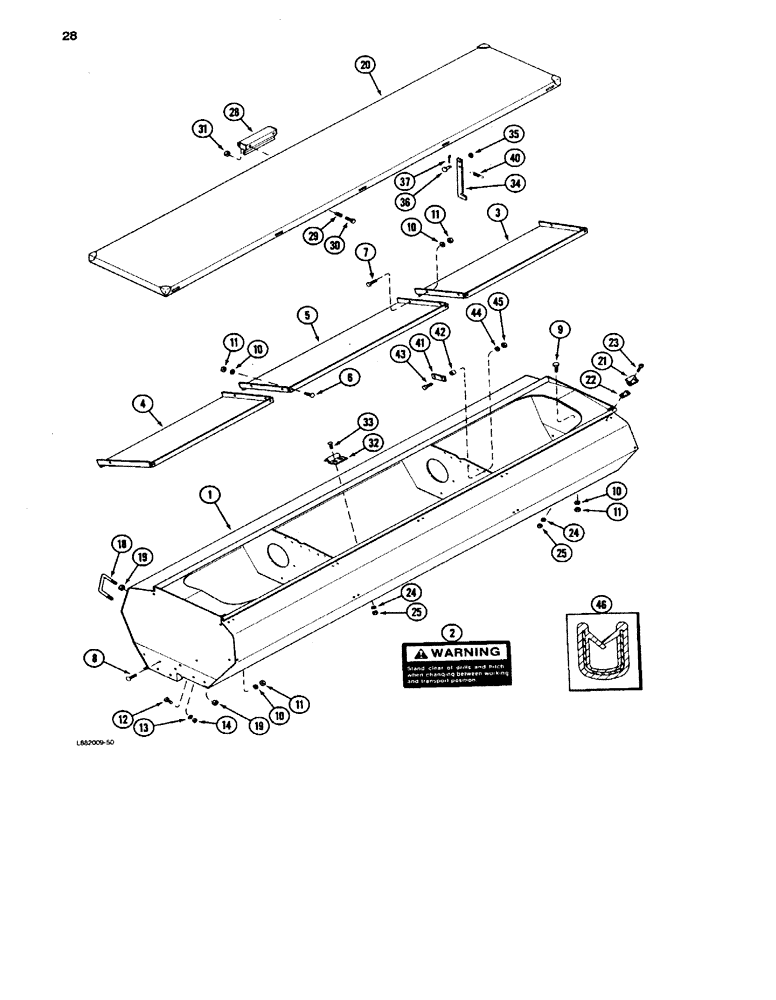

Схема запчастей Case IH 5200 - (28) - HOPPER, GRAIN AND FERTILIZER, 15 FOOT DRILL
21
46
10
11
31
18
41
34
24
32
4
11
19
25
36
12
11
10
43
22
11
14
1
2
10
20
5
37
25
8
45
6
19
42
7
28
33
35
9
30
29
40
10
44
23
24
13
3

Артикул

Название

Примечание

Количество

1

97766C1

HOPPER

ASSEMBLY - grain and fertilizer

1шт.

2

1254170C1

DECAL

- caution

1шт.

3

90948C1

PANEL

- hopper, outer left

1шт.

4

90949C1

PANEL

- hopper, outer right

1шт.

5

815832C1

PANEL

- hopper, center

1шт.

6

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

8

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

120377

NUT,3/8" - 16, Gr 5

1шт.

12

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

18

811627C1

BOLT

U-BOLT - 5/8 inch NC

2шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

8шт.

20

90931C1

COVER

ASSEMBLY - hopper

1шт.

21

815173C1

HINGE

- cover

7шт.

22

97620C1

SHIM

- hinge

7шт.

23

160562

SCREW,Cross Pan Hd, 1/4" - 20 x 1"

BOLT - pan head, 1/4 NC x 1 inch

14шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

28

815174C1

LATCH

- cover

1шт.

29

N32176

SPRING

- latch

2шт.

30

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

31

9413952

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16 inch NC

2шт.

32

815175C1

CLIP

- latch

1шт.

33

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

34

815176C1

ARM

- cover

2шт.

35

619855R1

WASHER

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

36

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis

2шт.

37

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

40

398304R1

SPRING

- return

2шт.

41

815178C1

SPACER

SUPPORT - arm retaining

2шт.

42

594536R1

BUSHING

- support

4шт.

43

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

120377

NUT,3/8" - 16, Gr 5

4шт.

46

NSS

NOT SOLD SEPARAT

MOULDING - protective guard (Order 196707C1, cut to desired length)

1шт.

196707C1

SEAL

MOULDING - protective guard, 50 foot

1шт.

Выбрано товаров: 40
