Запчасти Case IH 5200 (26) - MAIN FRAME

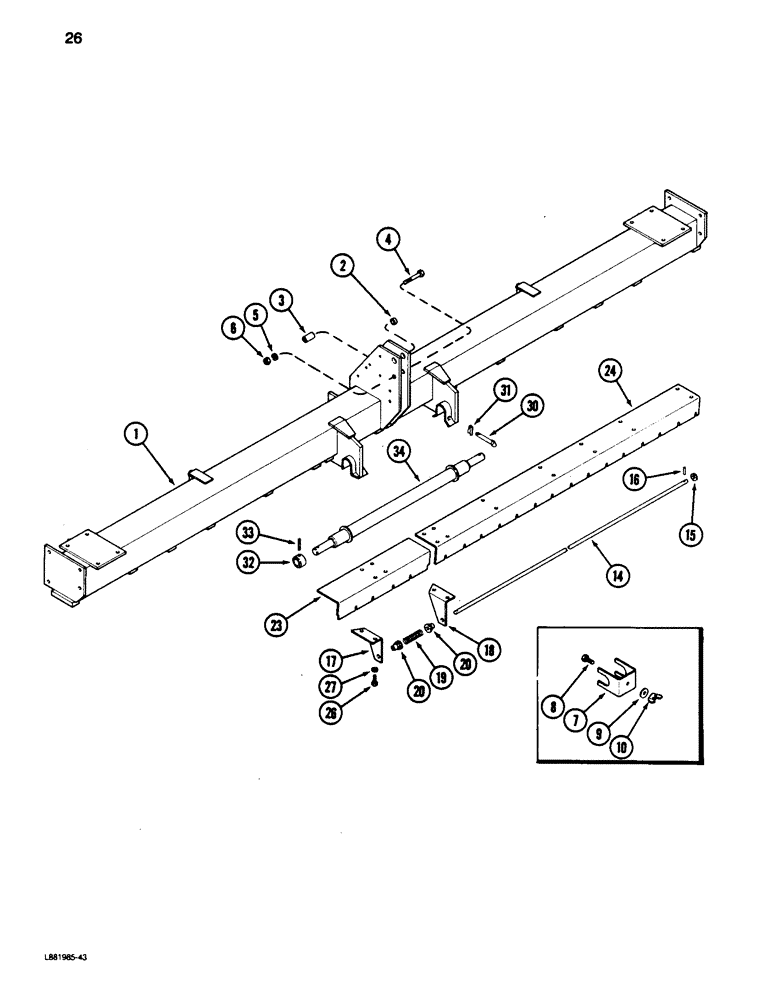

Схема запчастей Case IH 5200 - (26) - MAIN FRAME
20
5
14
33
8
7
24
2
15
9
19
16
6
3
17
32
1
23
20
18
30
31
10
34
27
28
4

Артикул

Название

Примечание

Количество

1

90828C1

FRAME

ASSEMBLY - main, 15 foot drill

1шт.

1

1279685C1

FRAME ASSY

FRAME ASSEMBLY - main, 20 foot drill

1шт.

2

97772C1

BUSHING

- mast, 15 foot drill only

2шт.

3

462425R1

SPACER

- mast

1шт.

4

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

129-108

NUT,3/4"-10, G5

1шт.

7

815753C1

CHANNEL

BRACKET - drawbar release

1шт.

8

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

1шт.

9

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

1шт.

10

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

1шт.

14

90929C1

ROD

- drawbar pivot, 15 foot drill

1шт.

14

1279891C1

DRAWBAR

ROD - drawbar pivot, 20 foot drill

1шт.

15

31017

WASHER - flat 3/16 x 1 15/32 x 7/64 inch

1шт.

16

26612R1

PIN,1/4" x 1 1/2", Coiled

1шт.

17

1279612C1

ANGLE

BRACKET - pivot shaft, left

6шт.

18

1279613C1

ANGLE

BRACKET - pivot shaft, right

6шт.

19

16046D

SPRING

- drawbar lock

1шт.

20

815264C1

BUSHING,19.43mm ID x 24.89mm OD x 31.24mm L

- drawbar lock

1шт.

23

1279839C1

ANGLE

BRACKET - furrow opener, 15 foot drill 7 inch spacing

1шт.

23

90946C1

ANGLE

BRACKET - furrow opener, 15 foot drill 8 inch spacing

1шт.

23

90947C1

ANGLE

BRACKET - furrow opener, 15 foot drill 10 inch spacing

1шт.

23

1279839C1

ANGLE

BRACKET - furrow opener, 20 foot drill 7 inch spacing

1шт.

23

1263959C1

ANGLE

BRACKET - furrow opener, 20 foot drill 8 inch spacing

1шт.

23

1263962C1

ANGLE

BRACKET - furrow opener, 20 foot drill 10 inch spacing

1шт.

24

90939C1

ANGLE

BRACKET - furrow opener, left, 15 foot drill 7 inch spacing

1шт.

24

90941C1

ANGLE

BRACKET - furrow opener, left, 15 foot drill 8 inch spacing

1шт.

24

90943C1

ANGLE

BRACKET - furrow opener, left, 15 foot drill 10 inch spacing

1шт.

24

1279862C1

ANGLE

BRACKET - furrow opener, left, 20 foot drill 7 inch spacing

1шт.

24

1263960C1

ANGLE

BRACKET - furrow opener, left, 20 foot drill 8 inch spacing

1шт.

24

1263963C1

ANGLE

BRACKET - furrow opener, left, 20 foot drill 10 inch spacing

1шт.

24

90940C1

ANGLE

BRACKET - furrow opener, right, 15 foot drill 7 inch spacing

1шт.

24

90942C1

ANGLE

BRACKET - furrow opener, right, 15 foot drill 8 inch spacing

1шт.

24

90944C1

ANGLE

BRACKET - furrow opener, right, 15 foot drill 10 inch spacing

1шт.

24

1279863C1

ANGLE

BRACKET - furrow opener, right, 20 foot drill 7 inch spacing

1шт.

24

1263961C1

ANGLE

BRACKET - furrow opener, right, 20 foot drill 8 inch spacing

1шт.

24

1263964C1

ANGLE

BRACKET - furrow opener, right, 20 foot drill 10 inch spacing

1шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

24шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

30

113225C1

PIN

- hitch

2шт.

31

A30338

PIN

- clinch (Replaces 373025R91)

2шт.

32

401233R1

COLLAR

- thrust

2шт.

33

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

34

137084C1

SPINDLE

- hitch, Category II

1шт.

34

137083C1

SPINDLE

- hitch, Category III

1шт.

Выбрано товаров: 45
