Запчасти Case IH 5200 (24) - 5200 GRAIN DRILL, ALTERNATING MARKER VALVE

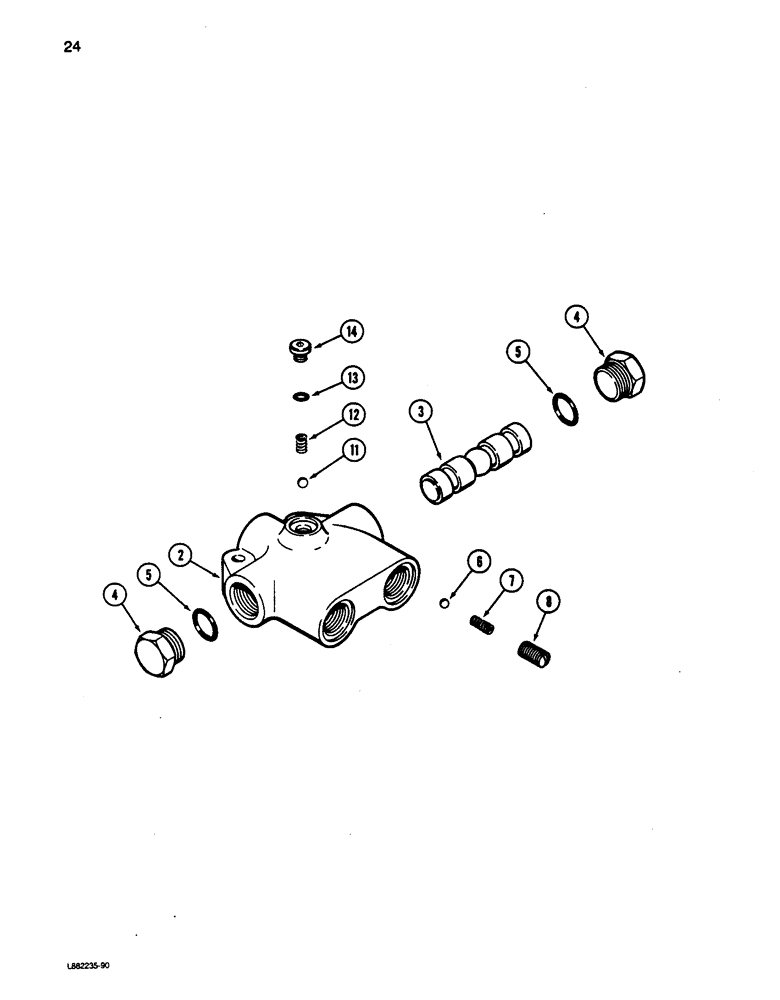

Схема запчастей Case IH 5200 - (24) - 5200 GRAIN DRILL, ALTERNATING MARKER VALVE
5
4
6
14
7
8
4
2
13
12
11
5
3

Артикул

Название

Примечание

Количество

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - row marker

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order 93006C1)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order 93006C1)

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - valve (Order 93006C1)

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD

2шт.

6

211-204

BALL

- 3/16 inch diameter

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - ball (Order 93006C1)

2шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

11

211-206

BALL,1/4" Dia

- 1/4 inch diameter

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - ball (Order 93006C1)

1шт.

13

369375R1

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

- 1/8 inch OD

1шт.

14

86632547

PLUG,Hex, 5/16"-24 ORB

Spring retaining Hex Soc, 5/16"-24 ORB

1шт.

Выбрано товаров: 12
