Запчасти Case IH 5200 (22) - 5200 GRAIN DRILL 23, CONTROL VALVE

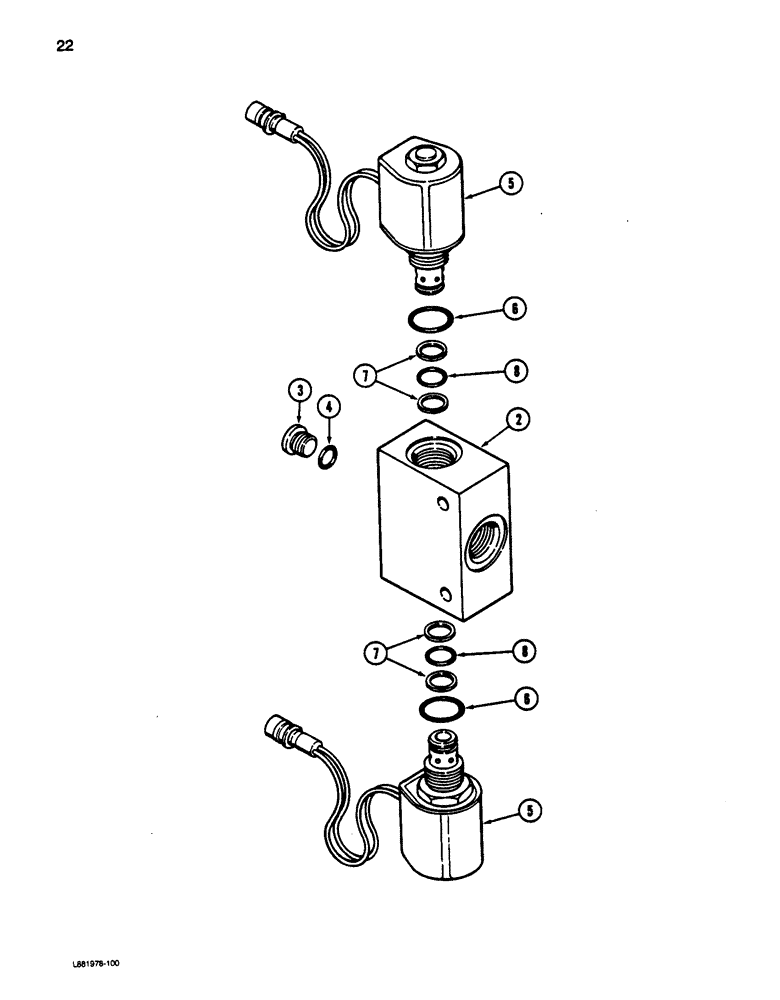

Схема запчастей Case IH 5200 - (22) - 5200 GRAIN DRILL 23, CONTROL VALVE
8
7
4
8
6
3
7
5
5
2
6

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSEMBLY - marker control

1шт.

2

145317C2

VALVE BODY

BODY - valve

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of seal repair kit P/N 145316C1

1шт.

5

149989C91

VALVE

- solenoid

2шт.

6

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

Part of seal repair kit P/N 145316C1

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - solenoid valve backup

4шт.

Part of seal repair kit P/N 145316C1

1шт.

8

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- solenoid valve

2шт.

Part of seal repair kit P/N 145316C1

1шт.

145316C1

REPAIR KIT

KIT - seal repair, Includes: Ref. 4, 6, 7 and 8

1шт.

Выбрано товаров: 13
