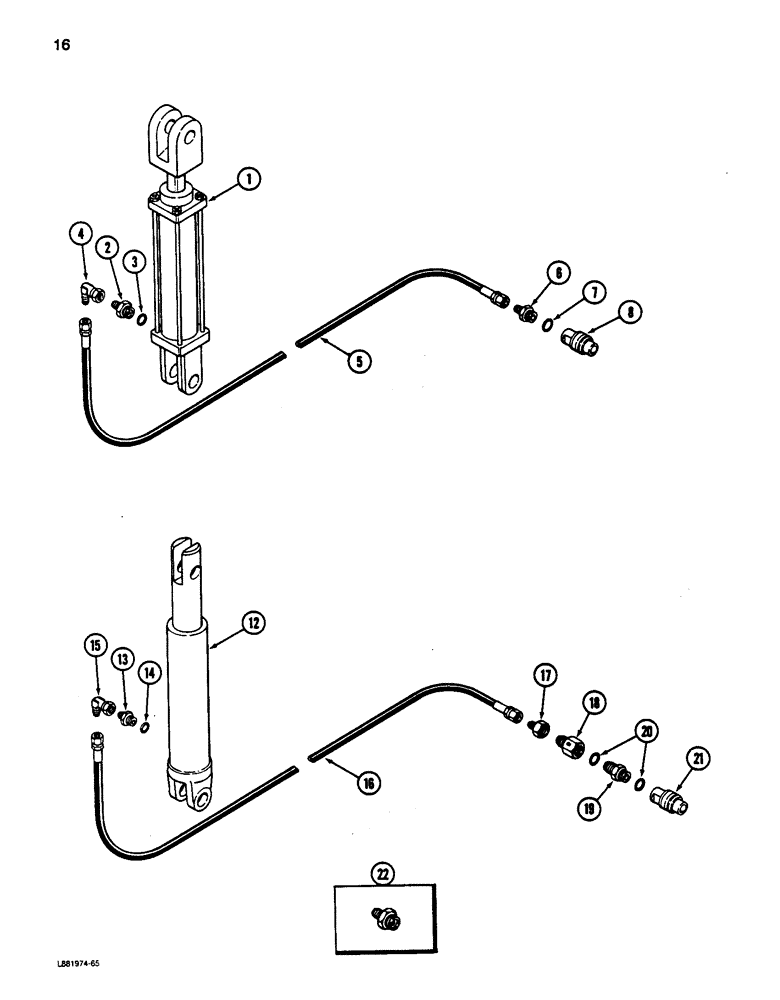

Запчасти Case IH 5200 (16) - MARKER HYDRAULICS, HYDRAULIC SELECTOR

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Page 19) , 15 FOOT

2шт.

2

1263477C3

HYD CONNECTOR

CONNECTOR - union restrictor , 15 FOOT

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch tube OD , 15 FOOT

2шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree , 15 FOOT

2шт.

5

147779C1

HYDRAULIC HOSE

HOSE - hydraulic, 145 inch long , 15 FOOT

2шт.

6

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - reducer , 15 FOOT

2шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/B inch tube OD , 15 FOOT

2шт.

8

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male , 15 FOOT

2шт.

12

REF

INSTRUCTION

CYUNDER ASSEMBLY - lift (See Page 21) , 20 FOOT

2шт.

13

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - swivel, 3/8 inch tube , 20 FOOT

2шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, 20 foot

2шт.

15

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree , 20 FOOT

2шт.

16

810606C1

FLEXIBLE HOSE

HOSE - hydraulic, 194 inch long , 20 FOOT

2шт.

17

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

- 5/8 to 3/8 inch , 20 FOOT

2шт.

18

1279860C91

RESTRICTOR

CONNECTOR - restrictor , 20 FOOT

2шт.

19

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight , 20 FOOT

2шт.

20

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube OD , 20 FOOT

4шт.

21

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male , 20 FOOT

2шт.

22

1958271C1

RESTRICTOR

FITTING - restrictor , 20 FOOT

1шт.
