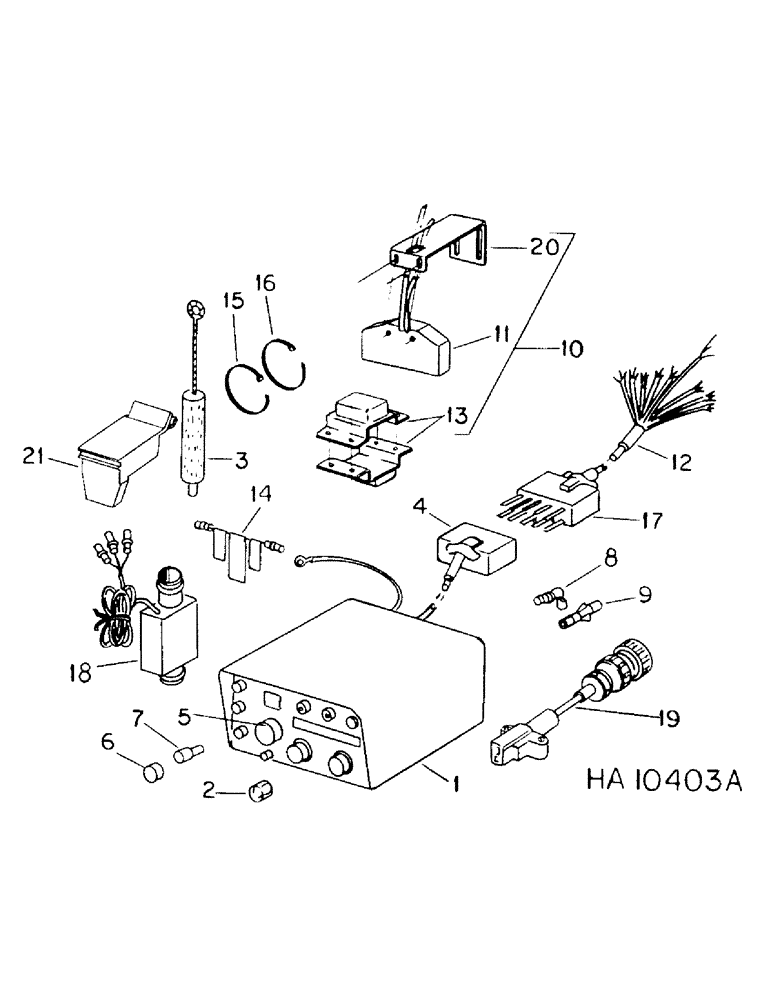

Запчасти Case IH 5100 (D-21) - SEED FLOW MONITOR, COMB DRILLS USE SEPARATED DELIVERY TUBES

1

79299C1

CONSOLE

CONSOLE, seed flow monitor, renewed, consists of ref nos 1, 4 thru 9, console (NSS)

1шт.

1

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Instrument Cluster

1шт.

1

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

133924C1

DECAL

PRODUCT GRAPHIC, seed flow

1шт.

2

106652

FUSE,3 Amp, Type 3AG

FUSE, 3 amp

1шт.

3

128817C1

BRUSH, COMMUTATOR

BRUSH BRUSH, seed sensor cleaning

1шт.

4

128814C1

SOCKET

SOCKET, female connector

1шт.

5

128816C1

BUZZER

BUZZER, sonalert

1шт.

6

58499C1

LENS

LENS, amber

1шт.

7

58554C1

BULB,C2F, #1892, 14V

LAMP

1шт.

8

58558C1

SUPPRESSOR

SUPPRESSOR, spark plug

1шт.

9

58559C1

SUPPRESSOR

SUPRESSOR, distributor

1шт.

10

819972C91

SENSOR

KIT, granular shaft sensor, consists of

1шт.

1097174R1

INSTRUCTION

PAMPHLET

1шт.

11

818367C91

SENSOR

SENSOR ASSY, shaft rotation, consists of ref no 16, sensor (NSS)

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, no 8 x 1/2 p/hdcr tap

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

12

819974C91

HARNESS

HARNESS, single drill wiring, consists of ref nos 14 thru 17

1шт.

1097071R2

INSTRUCTION

SPARE PART MANUAL, seed flow monitoring system

1шт.

13

818368C91

MAGNET

MAGNET ASSY, feed shaft consists of (2) magnet (NSS)

2шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

SCREW, no. 4 x 5/16 znp r/hds mach

2шт.

134524

SHAFT

no. 4 mach screw type 1

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

14

58557C1

ELECTRICAL WIRE

WIRE WIRE, shortening

1шт.

15

58555C1

FASTENER

STRAP, tie 7 in

1шт.

16

58556C1

CABLE TIE

CABLE STRAP STRAP, tie 14 in

1шт.

17

128813C1

CONNECTOR,ELECTRIC

PLUG, male connection socket

1шт.

18

819971C91

SENSOR

SENSOR, seed, consists of ref nos 15, 16 & 21, sensor (NSS)

1шт.

19

819973C1

CABLE

CABLE, adapter, to convert cyclomiter 2 console to grain drill seed flow system

1шт.

20

818369C91

BRACKET

BRACKET, sensor feed shaft, consists of

1шт.

450644

BEARING ASSY,50 mm ID x 110 mm OD x 27 mm

SCREW, no. 8 x 3/8 znp h/hd mach

2шт.

120622

NUT,#8-32

NUT, #8-32

2шт.

NLS

NO LONGER SERVICED

.188 x .438 x .036

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

841109C1

SHIELD

SHIELD, light

1шт.
