Запчасти Case IH 5100 (D-20) - DRAG CHAIN

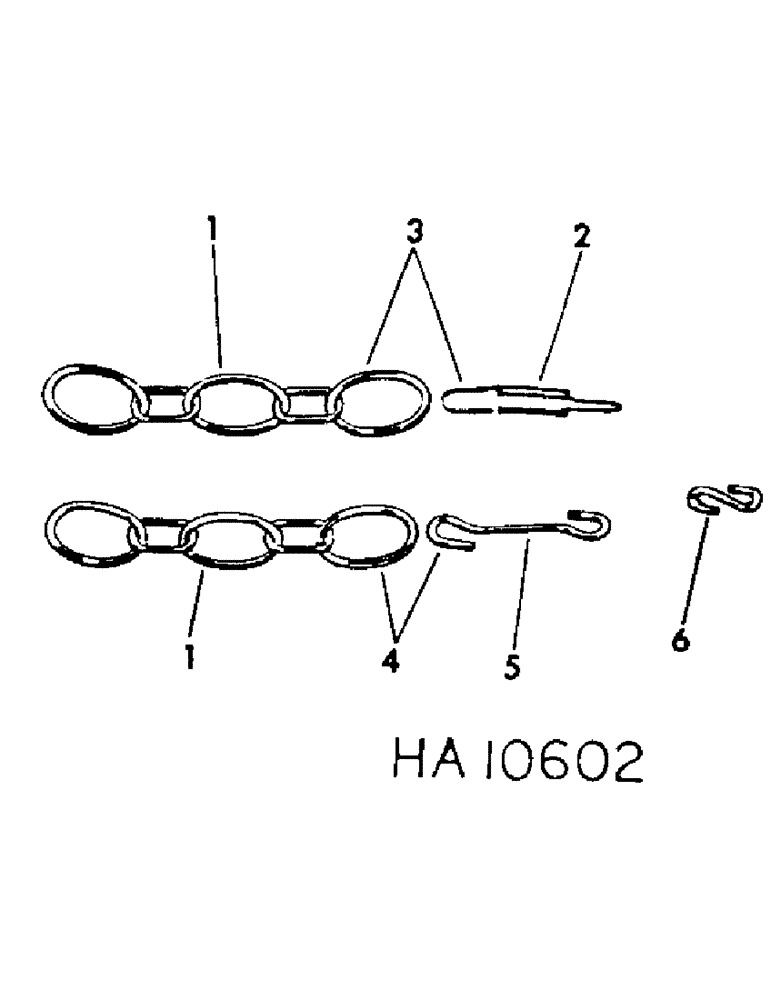

Схема запчастей Case IH 5100 - (D-20) - DRAG CHAIN
5
1
3
4
2
1
6

Артикул

Название

Примечание

Количество

1

601565R91

CHAIN (AG)

CHAIN, drag

13шт.

2

N42089

COIL SPRING

SPRING, drag chain, for use on four outer furrow openers, two at each end of drill

1шт.

3

NA22821

CHAIN (CE)

CHAIN ASSY, end drag, includes 1-601565R91, chain and 1-N42089, spring, for use on four outer furrow openers, two at each end of drill

1шт.

4

NA10643

CHAIN (AG)

CHAIN ASSY, intermediate drag, includes 1-601565R91, chain, and 1-N11031 link

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

5

N11031

LINK, CONNECTING

LINK, drag chain

9шт.

6

(Not used this application)

1шт.

Выбрано товаров: 9
