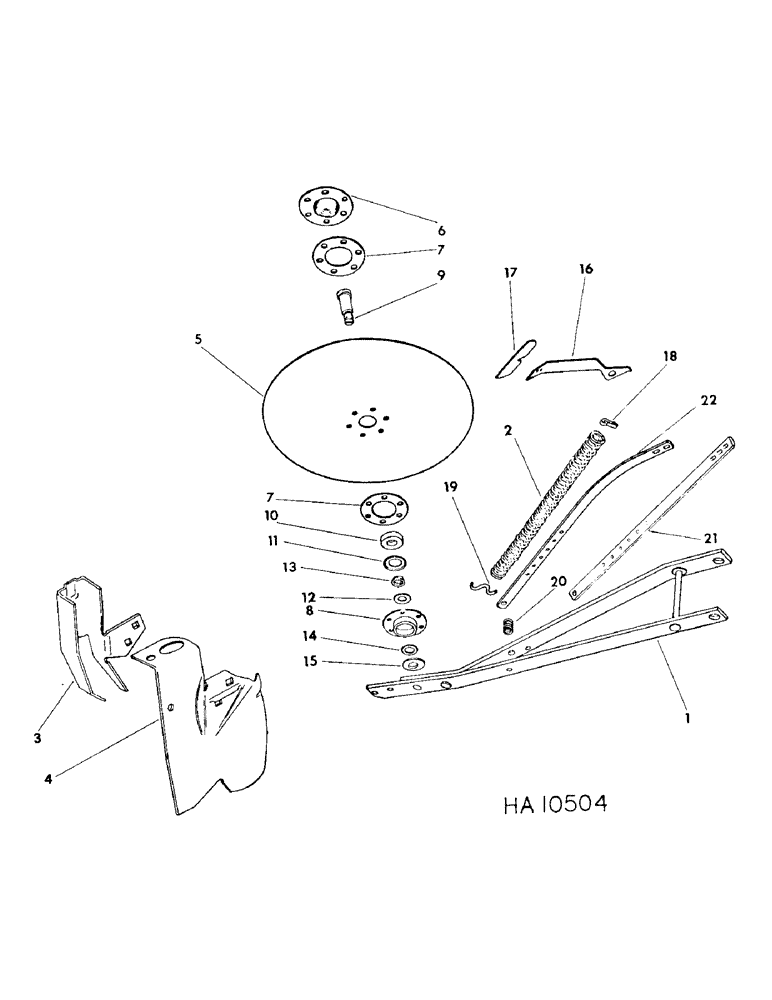

Запчасти Case IH 5100 (D-19) - SINGLE DISK FURROW OPENERS

1

609503R91

BAR

DRAWBAR ASSY, front rank LH

3шт.

1

609504R91

BAR

DRAWBAR ASSY, front rank RH, drawbars include 1-106929, rivet

3шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 pln T/HD sol

6шт.

1

609509R92

BAR

DRAWBAR ASSY, rear rank LH

3шт.

1

609510R92

BAR

DRAWBAR ASSY, rear rank LH

4шт.

2

N42899

SPRING

pressure

13шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga

13шт.

3

819165C1

BOOT

DEFLECTOR, single disk LH

6шт.

3

819166C1

BOOT

DEFLECTOR, single disk RH

7шт.

4

819191C2

BOOT

single disk LH

6шт.

4

819192C2

BOOT

single disk RH

7шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg, 2 per bolt

2шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

5

603004R2

PLOW DISC

DISK, furrow openers single

13шт.

6

602990R1

CAP

disk

13шт.

7

602992R1

GASKET

bearing retainer

26шт.

8

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

bearing

13шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-hd small solid, per retainer

6шт.

9

602987R1

BOLT

BOLT, disk

13шт.

121358

YOKE

5/8-18 hex

13шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSY, disk

13шт.

11

602994R1

FLANGE

seal

13шт.

12

464628R1

SEAL

dirt, replaces 602993R1

13шт.

13

602988R1

SPACER

seal retainer

13шт.

14

591714R1

WASHER

.718 x 1.250 x .054 flat, 2 per furrow opener

2шт.

15

21712R1

WASHER

.718 x 1.500 x .105 flat

13шт.

16

603620R11

BLADE

SCRAPER ASSY, single disk LH

6шт.

16

603621R11

PACKAGE

SCRAPER ASSY, single disk RH, includes 1-W7008, blade and 2-106883, rivet

7шт.

609438R1

PIN

3/8 x 3-9/16 std-hd-dld

13шт.

619856R1

WASHER

.406 x 1.000 x .056

13шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

13шт.

17

W7008

BLADE

disk scraper

13шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

26шт.

18

605964R1

CLIP

special flat cotter

13шт.

19

F6366

LOCK

pressure spring

13шт.

20

N32176

SPRING

pressure bar location

13шт.

21

609515R1

BAR

prssure spring front straight, 23.25 in length

6шт.

21

609516R1

BAR

pressure spring rear straight, 22.12 in length

6шт.

22

609517R1

BAR

pressure spring rear curved

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

BOLT, 3/8-16 x -3/8 hex-hd

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL, single, consists of ref no 5 thru 11

1шт.
