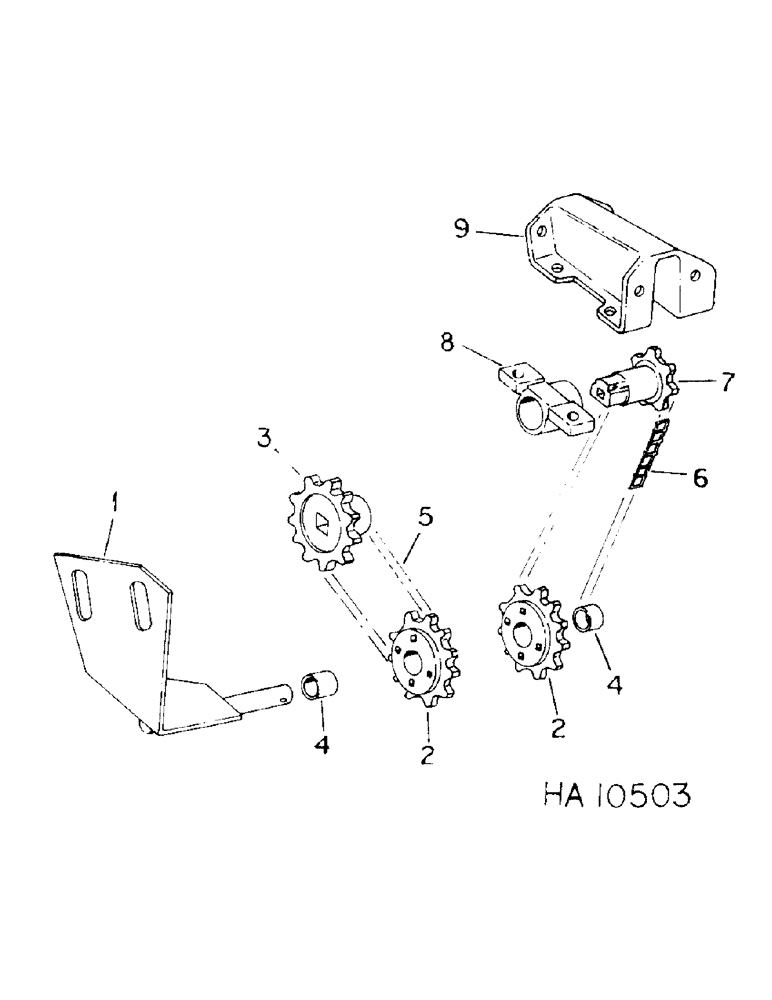

Запчасти Case IH 5100 (D-18) - GRASS SEED DRIVE

1

816309C1

SUPPORT

ASSY, chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

123077

NUT, 3/8-16 hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

819949C1

DRIVE SPROCKET

SPROCKET, chain tightener 10T, sintered, metal, 2 per drive

2шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

1/4-20 x 2 carriage

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

815324C1

DRIVE SPROCKET

SPROCKET, grass seed drive 10T

1шт.

815803C1

CLIP

sprocket retaining

2шт.

4

474064R1

WASHER

SPACER, tightener sprocket

2шт.

5

CHAIN ASSY, grass drive, for service order 1-CS25, 10 foot roll of no. 25 steel chain and reduce to 30 links

1шт.

6

CHAIN ASSY, grass driven, for service order 1-CS25, 10 foot roll of no. 25 steel chain and reduce to 44 links

1шт.

CS25

CHAIN (AG)

CHAIN, #25, 133 links det/stl sprocket

1шт.

7

NA1475

DRIVE SPROCKET

SPROCKET, grass seed feed driven 7T

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

8

816533C1

BRACKET

BEARING, sprocket

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

9

816532C1

GUARD

drive chain

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

4шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.
