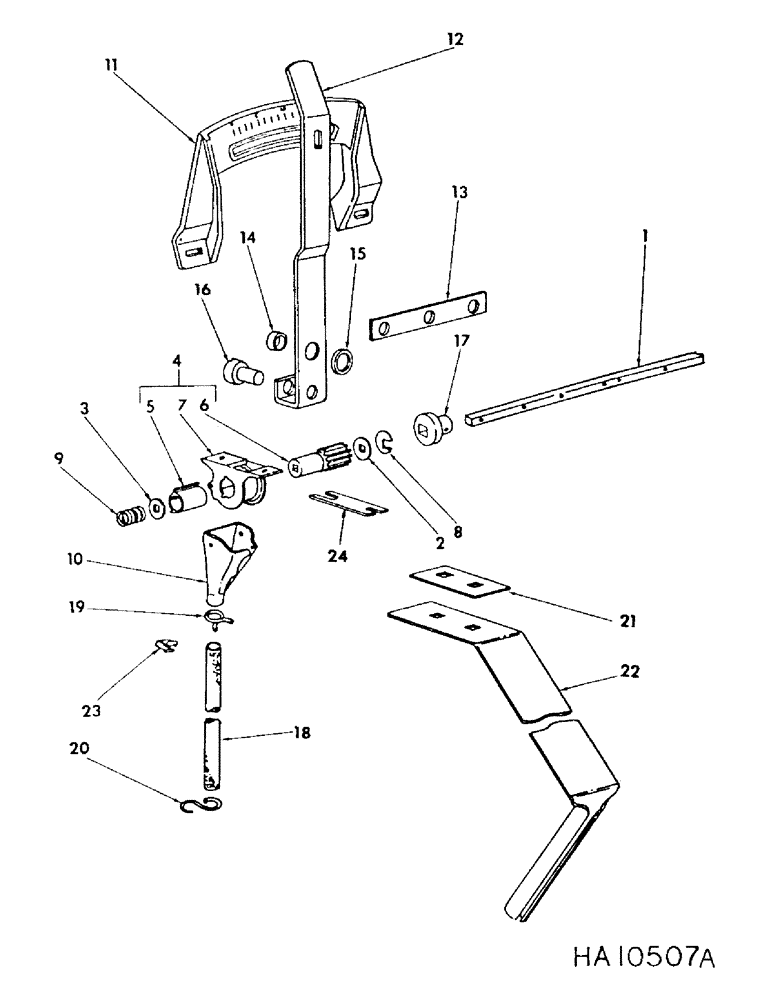

Запчасти Case IH 5100 (D-16) - GRASS SEED FEED MECHANISM

1

815619C1

DRIVE SHAFT

BAR, feed shaft

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

26шт.

2

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

.344 sq hole x .750 x .016

6шт.

3

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

.344 sq hole x .750 x .054

13шт.

4

600924R92

CUP ASSY.

CUP ASSY, grass seed, includes 1-600923R2, thimble, 1-601463R1, roll and 1-615750R92, cup assy

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd

26шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

26шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

26шт.

5

600923R2

BLOCK

THIMBLE, feed cup off

13шт.

6

601463R1

FINGER ASSY.

ROLL, feed

13шт.

7

615750R92

SUPPORT ASSY.

CUP ASSY, feed

13шт.

8

N32109

WASHER

11/32 sltd-hole x 7/8 x 26 ga

1шт.

9

N32176

SPRING

feed roll

13шт.

10

603817R1

TUBE

TOP, grass seed tube

13шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

13шт.

11

815627C1

INDICATOR

grass box feed

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

12

815628C1

LEVER

shifter

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16-18 x 1 type 5 crg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

7500032

BUSHING

NUT, 5/16-18 wing

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

13

815629C1

BAR

reinforcing

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

1 used per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

14

2551F

WASHER

lever pivot

1шт.

15

151401C1

BELLEVILLE WASHER

WASHER, Bellville

1шт.

16

815630C1

PIN,25.4mm OD x 42.16mm L

feed shifter

1шт.

17

819227C1

SLEEVE

BUSHING, feed shifter

1шт.

104056

RIVET

1/8 x 7/8 rd-hd

1шт.

18

609398R2

TUBE,12.95 mm ID, 1397 mm Length

seed

13шт.

19

603699R2

CLAMP

seed tube top

13шт.

20

603882R1

HOOK

seed tube lower

13шт.

20

F15708

SUPPORT TUBE,2.125" L

HOOK, seed tube lower, for band seeding

13шт.

21

815690C1

PLATE

BAR, holder mtg

1шт.

22

815689C1

HOLDER

band seed tube

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 1 per bolt 3/8"

1шт.

23

819193C1

SPRING CLIP

CLAMP, tube U

13шт.

22815R1

WASHER

.906 x 1.250 x .027

13шт.

24

818183C1

PROTECTIVE COVER

BAR, feed cover

1шт.
