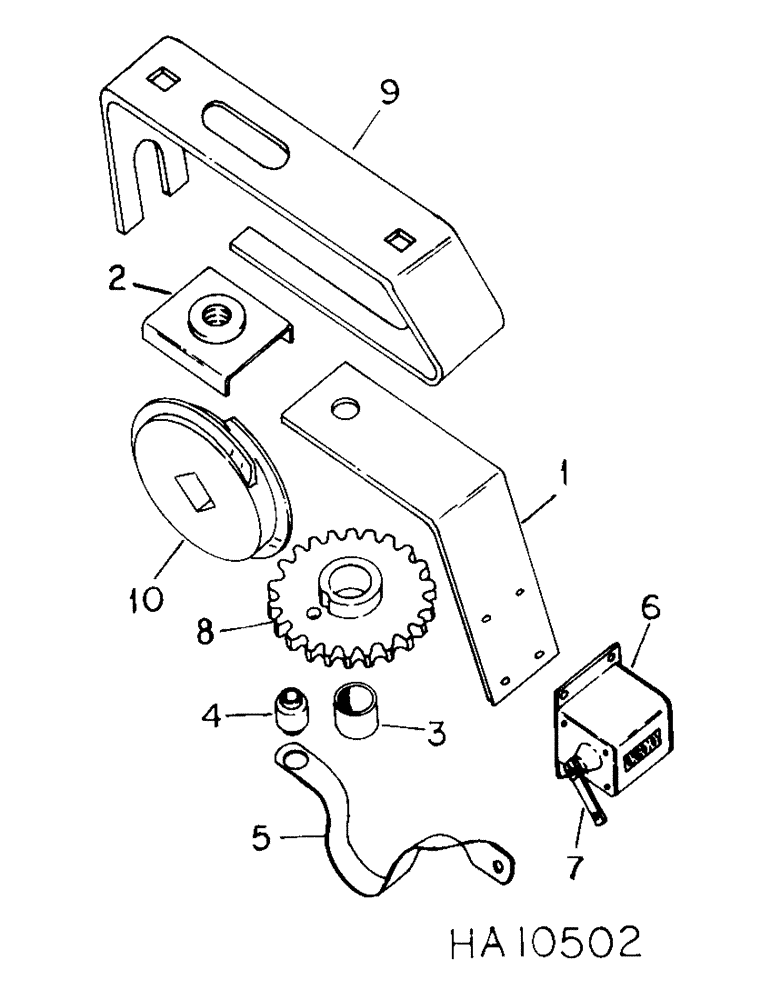

Запчасти Case IH 5100 (D-15) - DIGITAL LAND MEASURE

1

599560R1

BRACKET

SUPPORT, counter

1шт.

2

596936R1

SUPPORT

ASSY, counter gear

1шт.

3

599705R1

SPACER

gear

1шт.

4

609534R2

SPACER

counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 sltd-rd-hd-mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

607893R1

WASHER

.203 x .500 x .054

1шт.

5

598970R1

SPRING

counter

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

6

609535R91

COUNTER

acreage, includes 1-816878C1, arm assy

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

1/8 x 7/16 sm-b-hd brass

4шт.

7

816878C1

ARM

ASSY, counter w/screw

1шт.

8

815185C1

GEAR

34T counter

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

9

596933R1

BRACKET

counter gear worm

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3/8 x 1/2 type 5

2шт.

10

604420R1

GEAR

acreage counter worm

1шт.
