Запчасти Case IH 5100 (D-14) - GRASS SEED HOPPER UNIT

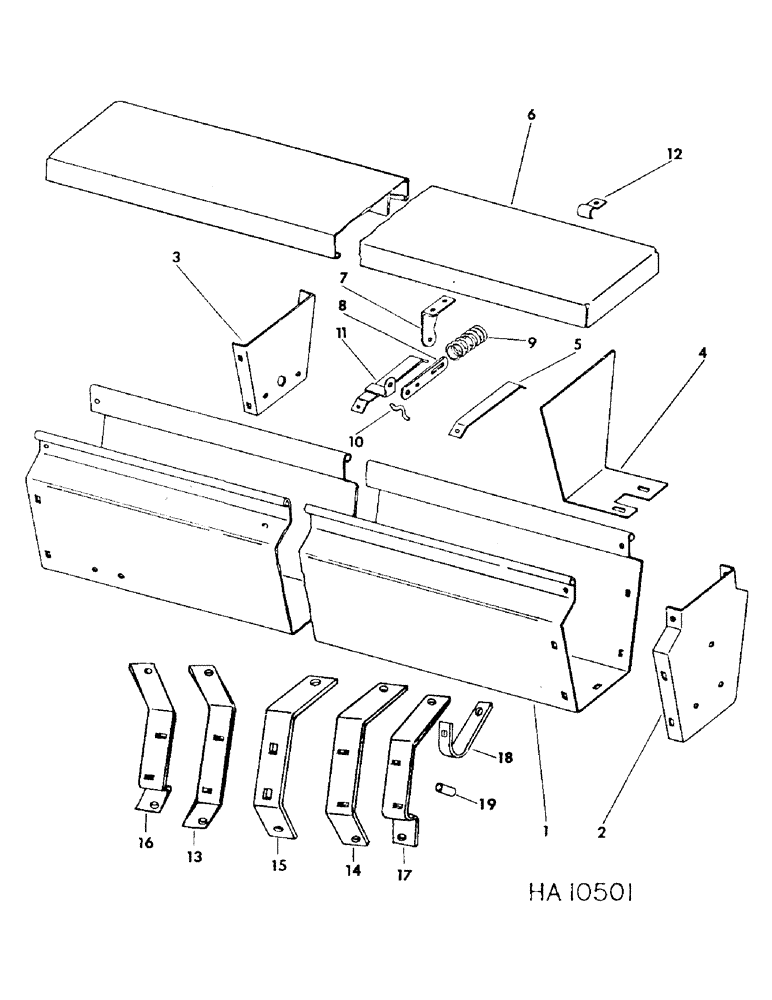

Схема запчастей Case IH 5100 - (D-14) - GRASS SEED HOPPER UNIT
11
8
13
4
14
16
18
19
6
1
2
9
3
5
7
12
10
17
15

Артикул

Название

Примечание

Количество

1

815588C2

HOPPER

ASSY, grass seed

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

819060C2

PANEL, SIDE

END, hopper

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 pan-hd-sltd

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

3

815597C1

PLATE

BAFFLE, hopper

2шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 1/2 carriage

4шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 carriage

4шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

815598C1

BAFFLE

grass seed

4шт.

5

815599C1

BRACKET

BRACE, hopper

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

815600C1

COVER

ASSY, hopper

1шт.

7

815615C1

SUPPORT

BRACKET, cover spring

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 sltd-pan-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

N32052

BAR

cover spring plunger

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x .042

1шт.

9

6628

SPRING

plunger

1шт.

10

N32114

LINCH PIN

LOCK, spring

1шт.

11

815616C1

BRACKET

ASSY, cover

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 button-hd

1шт.

23039R1

WASHER

.203 x .875 x 042

1шт.

12

815618C1

CLAMP

cover hinge

5шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16-18 x 5/8 hex-hd

1шт.

120376

NUT,5/16"-18, G5

(per bolt) 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (per bolt) 5/16"

1шт.

13

815634C2

BRACE

hopper support end LH

1шт.

14

815635C2

BRACE

hopper support end RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

15

815636C1

BRACKET

BRACE, hopper support intermediate

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

818265C1

BRACKET

BRACE, hopper support end LH

1шт.

17

818266C1

BRACKET

BRACE, hopper support end RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

(Not used application)

1шт.

19

(Not used application)

1шт.

Выбрано товаров: 63
