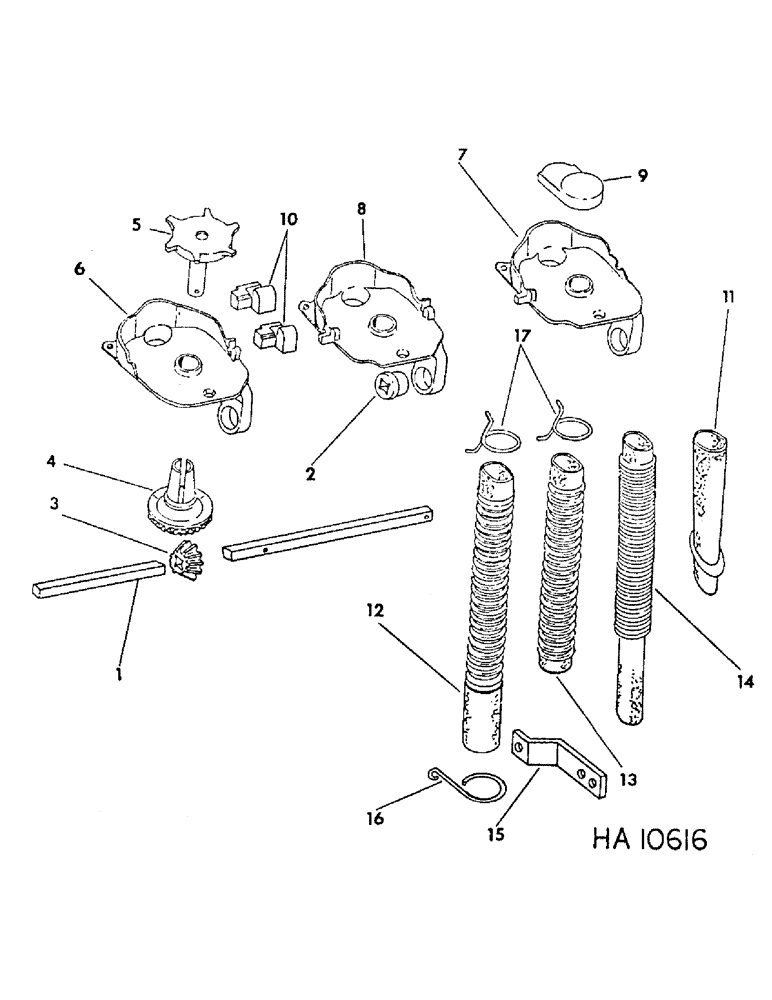

Запчасти Case IH 5100 (D-12) - FERTILIZER FEED MECHANISM

1

815381C1

BAR

fertilizer feed shaft

1шт.

112050

PIN,4.76mm OD x 22.23mm L

3/16 x 7/8 sq-end straight

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

M76123

WASHER,19/32" x 1 1/4" x .105", Sq Hole

.594 sq x 1.250 x .090

1шт.

2

603462R1

TRUNNION

bevel pinion

13шт.

3

603463R2

GEAR

bevel pinion 12T

13шт.

4

F282C

GEAR

feed shaft bevel

13шт.

5

602554R11

DRIVE SPROCKET

WHEEL ASSY, star feed, includes 1-N62414, pin

1шт.

N62414

PIN,3.96mm OD x 28mm L

shear

13шт.

6

603451R2

PLATE

bottom end LH

1шт.

7

609467R1

PLATE

bottom end RH

1шт.

8

603453R2

PLATE

bottom intermediate

11шт.

180018

CONNECTING LINK

1/4-20 x 5/8 hex-hd

26шт.

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

13шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

39шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

39шт.

9

603593R1

BLOCK

fertilizer feed shut-off

13шт.

10

603457R1

SPACER

bottom plate

12шт.

11

607289R2

TUBE,1.25" OD, 7" Length

combined delivery

13шт.

12

603589R3

TUBE

separate delivery fertilizer, tube required to have 66 convolutions, approximately 10-3/4 inch minimum length and 40-3/4 inch maximum length

1шт.

13

(Not used this application)

1шт.

14

(Not used this application)

1шт.

15

603722R2

BRACKET

SUPPORT, drag chain and tube

13шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

13шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 hex jam

13шт.

120376

NUT,5/16"-18, G5

13шт.

16

603592R1

SPRING CLIP

CLAMP, tube lower

13шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

17

603591R1

SPRING

delivery tube upper

13шт.
