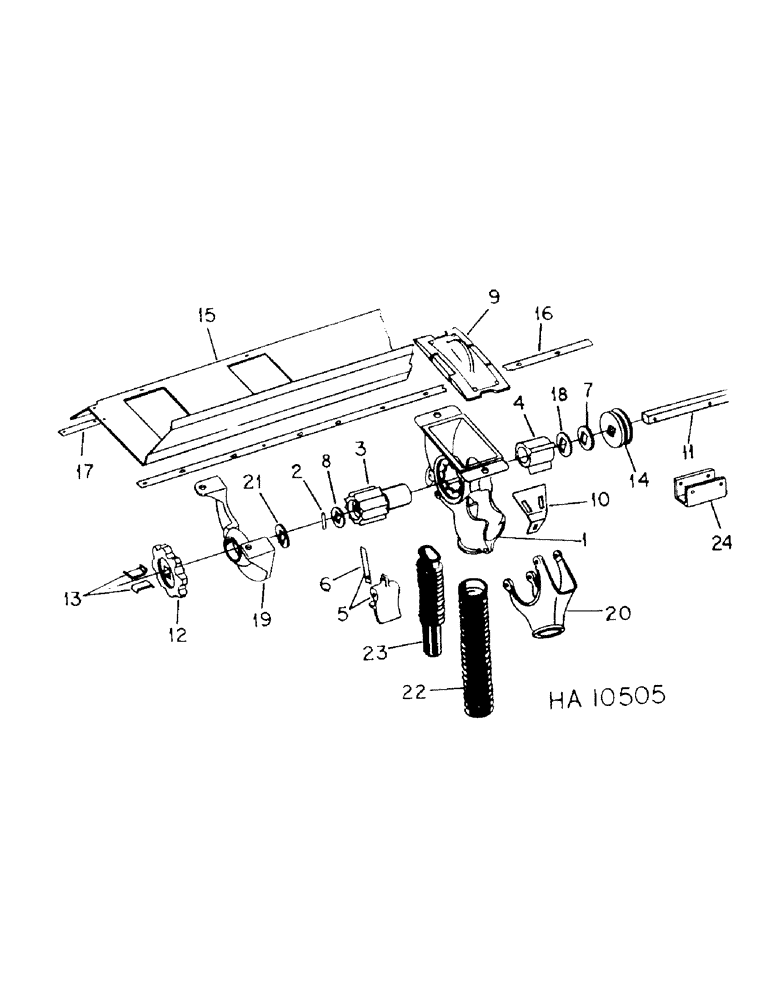

Запчасти Case IH 5100 (D-08) - GRAIN FEED SHAFT

1

603816R92

CUP

ASSY, fluted feed, includes 1-603295R92, cup assy, 1-603111R1 roll, 1-603112R1, block and 4-603106R1, washer

13шт.

1

603295R92

CUP

ASSY, fluted feed, less block and roll

13шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2 used per feed cup assy Hex, 5/16"-18 x 1 1/4", G5

2шт.

120376

NUT,5/16"-18, G5

1 used per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 used per bolt 5/16"

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

2

603134R1

PIN,4.76mm OD x 29.37mm L

feed cup, 1 used per feed cup

1шт.

3

603111R1

ROLLER

ROLL, fluted, 1 used per feed cup

1шт.

4

603112R1

BLOCK

shut-off, 1 used per feed cup

1шт.

5

603108R21

BOTTOM

ASSY, feed cup dump, includes 1-603178R1, latch and 1-106883, rivet, 1 used per feed cup assy

13шт.

17083R1

COTTER PIN,3/16" x 3"

1 per bottom 3/16" x 3"

1шт.

6

603178R1

LATCH

dump bottom

13шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

13шт.

7

N11720

WASHER

21/32 sq x 1-1/2 x 12 ga, 1 used per feed cup assy

1шт.

8

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

fluted feed cup spring

13шт.

9

818335C1

COVER ASSY

plate

13шт.

10

606034R1

GUARD

WINDSHIELD, grain feed, 1 per feed cup

1шт.

11

815285C2

BAR

feed shaft

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

13шт.

12

815324C1

DRIVE SPROCKET

SPROCKET, grass seed drive 10T

1шт.

13

815803C1

CLIP

sprocket retaining

2шт.

14

604420R1

GEAR

acreage counter worm

1шт.

15

816958C1

BOTTOM

SECTION, grain bottom partition

1шт.

16

816938C1

BAR

feed cup guide front

1шт.

17

815316C1

BAR

feed cup guide rear

1шт.

18

602106R1

SQ HOLE WASHER

21/32 sq x 1-11/64 x 32 ga

1шт.

19

815499C2

HANGER

grass seed drive sprocket

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16-18 x 7/8 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

815805C91

CUP

PACKAGE, grain seed viewing cup, individual cups not serviced separately, package consists of 24 viewing cups and 48 pins

1шт.

17083R1

COTTER PIN,3/16" x 3"

3/16" x 3"

2шт.

21

N11791

WASHER

sprocket retaining

1шт.

22

603263R2

TUBE,1.25" ID, 1.906" OD, 35, 9" Length

grain, tube required to have 30 convolutions, approximately 4.94 inch minimum length and 20.94 inch maximum length

1шт.

23

(Not used this application)

1шт.

24

(Not used this application)

1шт.
