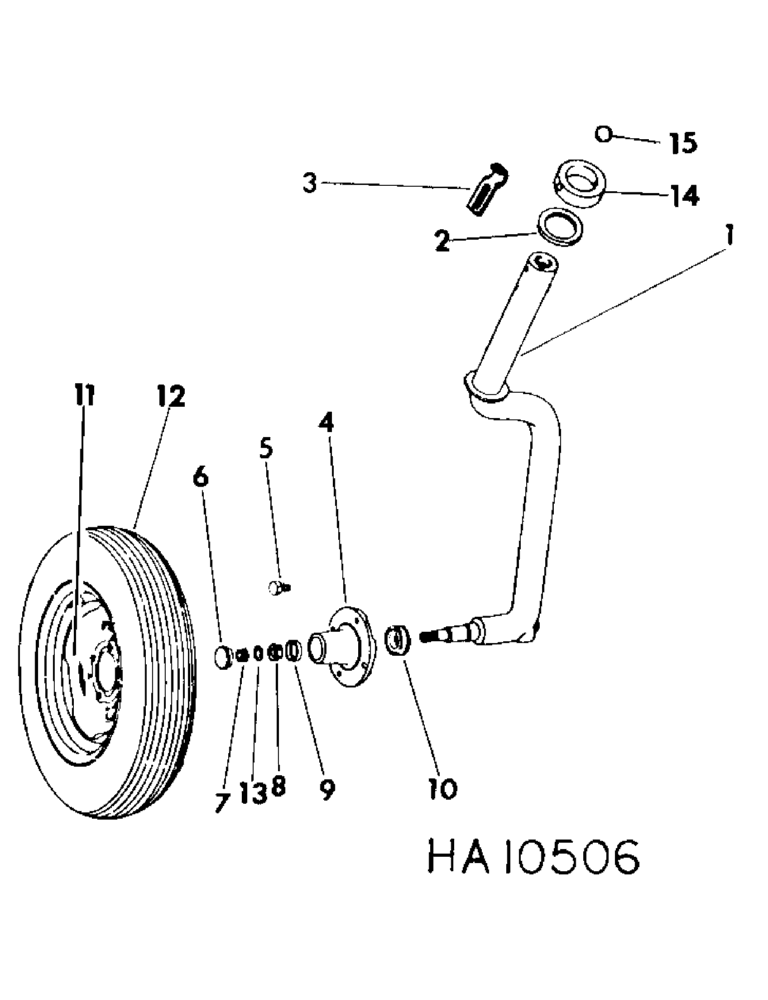

Запчасти Case IH 5100 (D-03) - CASTER WHEEL AXLE AND HUB

1

592636R91

AXLE

ASSY, caster wheel

1шт.

2

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

3

609483R1

LUG

axle bracket locking

1шт.

180144

RETAINER

BOLT, 7/16-14 x 7/8 hex-hd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

591535R1

HUB

caster wheel, replaces 619353R1

1шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

4шт.

6

602959R1

PLUG

CAP, hub

1шт.

7

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 hex sltd

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, caster axle outer bearing

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

651814R1

BEARING CUP

CUP, caster axle outer bearing

1шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

caster axle inner

1шт.

11

455169R92

WHEEL

15 x 4-1/2 KB caster

1шт.

12

TIRE, 6.70-15 4 ply I-1 tubeless

1шт.

387897R91

VALVE STEM

VALVE, tubeless tire, TR 415

1шт.

13

467750R1

WASHER

.781 x 1.500 x .105

2шт.

14

(Not used this application)

1шт.

15

17100R1

BALL

bearing axle bracket

1шт.
