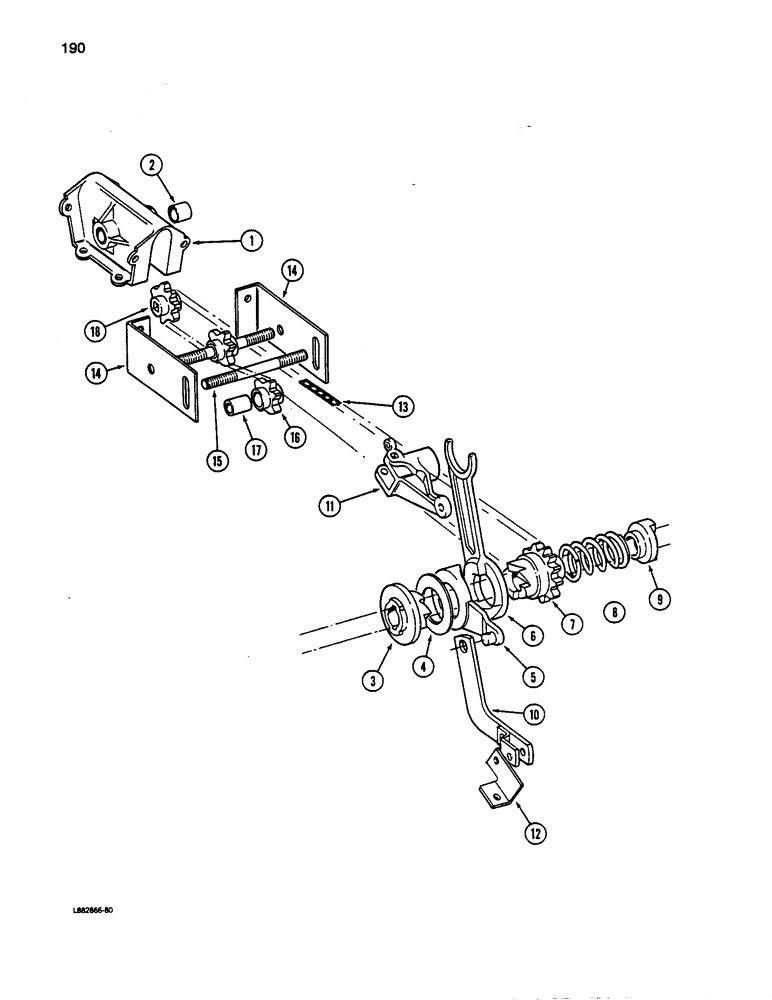

Запчасти Case IH 5100 (190) - BROME SEED ATTACHMENT, HIGH FRONT MOUNTED DRIVE

1

815671C11

GUARD

ASSEMBLY - brome seed driven sprocket

1шт.

2

598055R1

DRIVE BUSHING

BUSHING - brome seed guard

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- hex, 5/16 NC x 7/B inch

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

3

819023C1

COLLAR

- clutch

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

4

603265R1

WASHER

- brome drive clutch

1шт.

5

603133R1

CAM

- clutch throw-out

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 65º, 1/8" NPT x 7/8" lg

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

6

819025C1

CAM

- clutch fixed

1шт.

7

819024C1

DRIVE SPROCKET

SPROCKET - clutch drive 10 tooth

1шт.

8

35AC

SPRING

- clutch drive

1шт.

9

818093C1

COLLAR

- clutch spring

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

10

819305C1

LINKAGE

LINK - clutch shifter connecting

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, hair

1шт.

11

603132R1

ARMATURE

CAM - clutch shifter

1шт.

815154C1

BOLT,5/16" x 2 1/4", Gr 5

- round head square neck, 5/16 NC x 2x1/4 inc

1шт.

619856R1

WASHER

- flat, 13/32 x 1 x 3/64 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

28470R1

HEADED PIN,3/8" x 1 1/4"

PIN - headed, 3/8 x 1-1/4 inch

1шт.

12

818097C2

ANGLE

BRACKET - clutch lock-out angle

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - brome seed drive (See Note A)

1шт.

14

818095C1

SUPPORT

- chain tightener, left

1шт.

14

818096C1

SUPPORT

- chain tightener, right

1шт.

15

818094C1

STUD

- chain tightener idler

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

81шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

20601

WASHER - flat, 17/32 x 1-1/4 x 29/32 inch

4шт.

16

815645C11

SPROCKET

ASSEMBLY - chain tightener

2шт.

17

603328R1

BUSHING

- sprocket

1шт.

18

603735R1

DRIVEN SPROCKET

SPROCKET - brome seed driven 7 tooth NOTE A: For service order 82 links from bulk CS25 chain (10 ft. roll). NOTE B: Quantities are for one drive unit. One drive unit used on 13 x 7 and 16 x 7; two drive units used on 18 x 7 and 21 x 7.

1шт.
