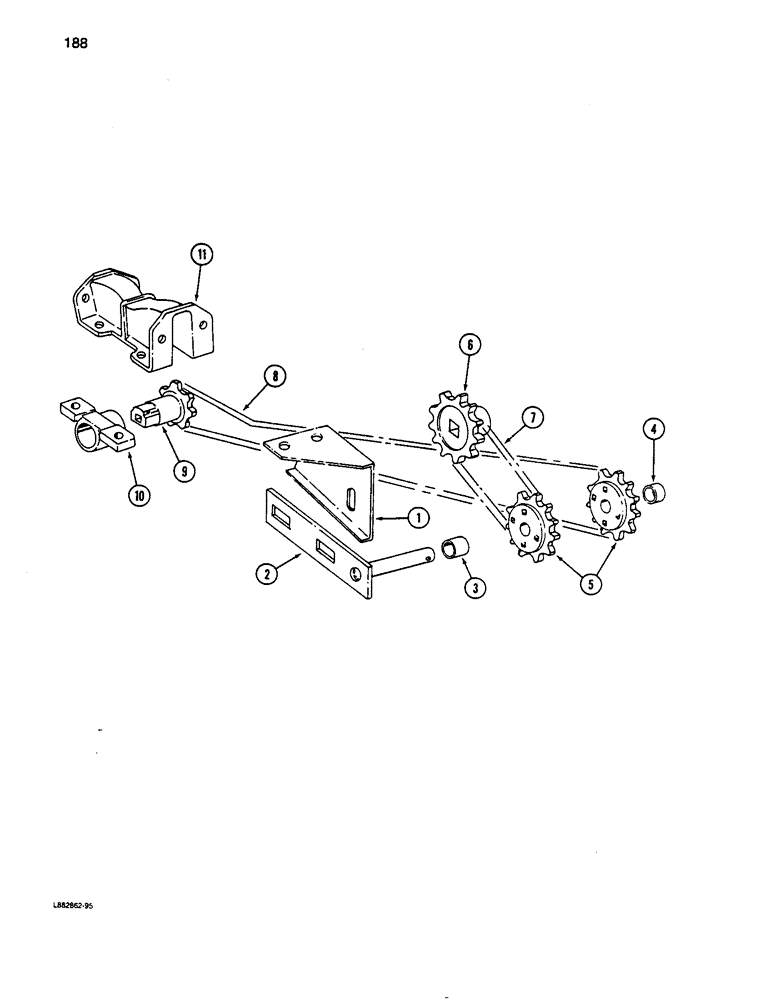

Запчасти Case IH 5100 (188) - GRASS SEED ATTACHMENT, LOW REAR MOUNTED DRIVE

1

815638C1

BRACKET

SUPPORT - chain tightener bracket

1шт.

2

816340C2

BRACKET

- drive chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

3

PO15237

SPACER

- tightener sprocket inner

1шт.

4

590750R1

SPACER

- tightener sprocket outer

1шт.

5

819949C1

DRIVE SPROCKET

SPROCKET - chain tightener

2шт.

598800R1

BOLT,Short NK, 1/4"-20 x 2", G5

- round head square neck, 1/4 NC x 2 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

REF

INSTRUCTION

SPROCKET - grass seed drive, 10 tooth (See Page 135)

1шт.

7

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive (See Note A)

1шт.

8

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - driven (See Note B)

1шт.

9

NA1475

DRIVE SPROCKET

SPROCKET - grass feed driven, 7 tooth

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

816533C1

BRACKET

BEARING - driven sprocket

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

11

816532C1

GUARD

- drive chain

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

NUT - hex, 5/16 inch NC NOTE A: For service order 26 links from bulk CS25 chain (10 ft. roll). NOTE B: For service order 62 links from bulk CS25 chain (10 ft. roll). NOTE C: Quantities are for one drive unit. One drive unit used on 13 x 7, 16 x 7; two drives used on 20 x 6, 24 x 6, 18 x 7.

1шт.
