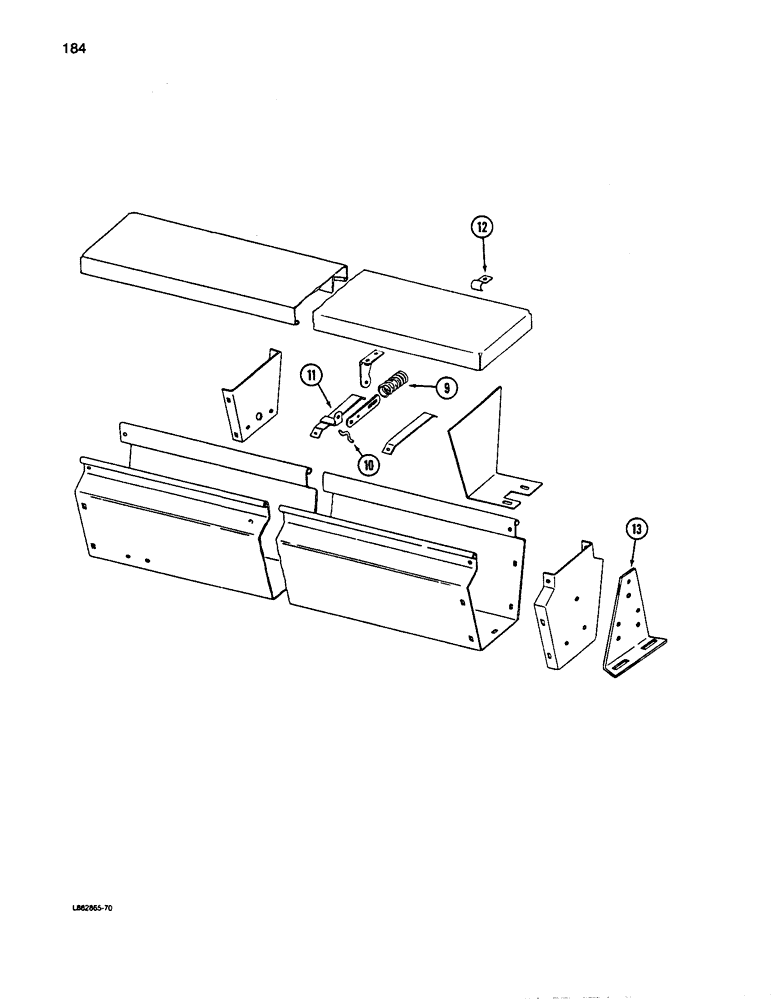

Запчасти Case IH 5100 (184) - GRASS SEED ATTACHMENT, LOW REAR MOUNTED HOPPER, CONTD

9

662B

SPRING - cover

1шт.

10

N32114

LINCH PIN

LOCK - spring

1шт.

11

815616C1

BRACKET

- cover

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

12

815618C1

CLAMP

- cover hinge (5 used 13 x 7 and 16 x 7)

1шт.

12

815618C1

CLAMP

- cover hinge (7 used 20 x 6, 24 x 6 and 18 x 7)

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

13

815656C1

SUPPORT

- hopper end

2шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

120376

NUT,5/16"-18, G5

4шт.

rac

8-4870

SPARE PARTS CAT

Issused April, 1988 Printed in U.S.A.

1шт.
