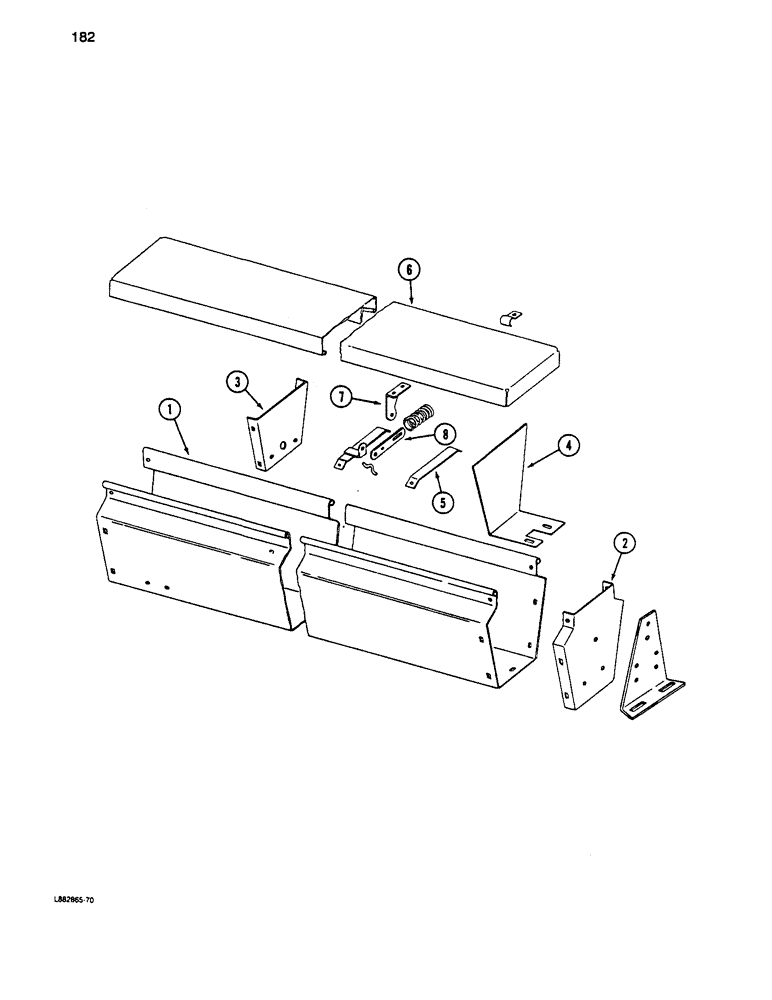

Запчасти Case IH 5100 (182) - GRASS SEED ATTACHMENT, LOW REAR MOUNTED HOPPER

1

815588C2

HOPPER

- grass seed (13 x 7)

1шт.

1

815589C3

HOPPER

- grass seed (16 x 7)

1шт.

1

351156A1

HOPPER

BOX ASSY GRASS SEED 18 X 7 LRM

1шт.

1

351160A1

HOPPER

BOX ASSY GRASS SEED 20 X 6 HFM

1шт.

1

351157A1

HOPPER

BOX ASSY GRASS SEED 24 X 7 LRM

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

2

815596C1

PANEL, SIDE

PANEL - hopper end

2шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

4шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NC x 1/2 inch

12шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120376

NUT,5/16"-18, G5

12шт.

3

815597C1

PLATE

BAFFLE - hopper (13x7, 16x 7, 18 x 7,21 x 7, 20x6 and 24x6)

2шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT - round head square neck, 5/16 NCx 1/2 inch

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

4

815598C1

BAFFLE

- grass seed (4 used 13 x 7 and 16 x 7; 5 used 18 x 7; 6 used 20x6; 7 used 24x6)

1шт.

5

815599C1

BRACKET

BRACE - hopper (13 x 7 and 16 x 7)

2шт.

5

815599C1

BRACKET

BRACE - hopper (20 x 6, 24 x 6, 18 x7)

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch (1 per brace)

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd (1 per brace)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

6

815600C1

COVER

- hopper (13 x 7)

1шт.

6

815601C1

COVER

- hopper (16 x 7)

1шт.

6

B15602C1

COVER - hopper (18 x 7 and 20 x 6)

1шт.

6

COVER - hopper (24 x 6)

1шт.

7

815615C1

SUPPORT

BRACKET - cover spring

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

2шт.

120380.

WASHER - lock, 1/4 inch

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

N32052

BAR

BRACKET - cover spring

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

1шт.
