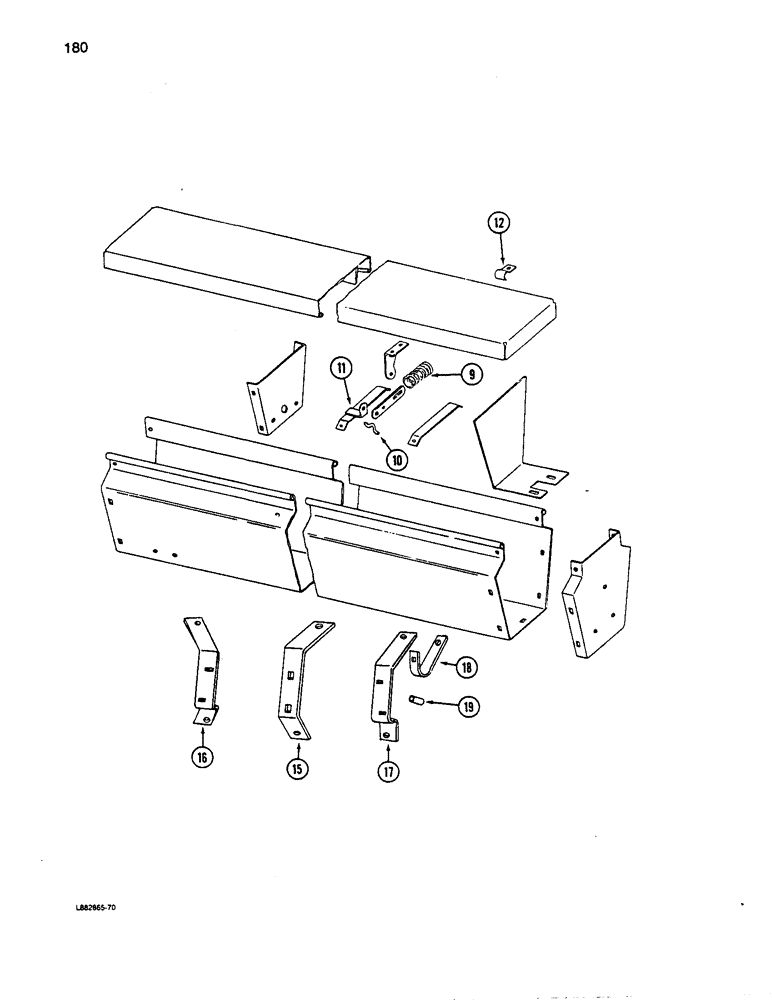

Запчасти Case IH 5100 (180) - 5100 END WHEEL GRAIN DRILL, GRASS SEED ATTACHMENT, HIGH FRONT MOUNTED HOPPER

9

6628

SPRING

- cover

1шт.

10

N32114

LINCH PIN

LOCK - spring

1шт.

11

815616C1

BRACKET

- cover

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

23039R1

WASHER

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

12

815618C1

CLAMP

- cover hinge (5 used 13 x 7 and 16 x 7)

1шт.

12

815618C1

CLAMP

- cover hinge (7 used 20x6,24x6, 18 x 7, 21 x 7, 16x 8, 20x8 and 16 x 10)

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

15

815636C1

BRACKET

BRACE - hopper support, intermediate (2 used 13 x 7, 16 x 7, 18x7,21 x7,20x 6,24x6 and 16x 8)

1шт.

15

815636C1

BRACKET

BRACE - hopper support, intermediate (4 used 20 x 8 and 16 x 10)

1шт.

16

818265C1

BRACKET

BRACE -hopper support end LH

1шт.

17

818266C1

BRACKET

BRACE - hopper support end RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(8 used 13 x7, 16 x 7, 18 x7, 20x6, 24x6,16x8,21 x7; 12used20x8 and 16x10) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

193-23

LOCK WASHER,Int Tooth, #5

WASHER - lock, 1/2 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

18

843257C1

SUPPORT

- grass box (For use when duplexing drills with two drill hitch)

6шт.

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

6шт.

-

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

19

522204R1

SPACER,1/4" Pipe x 1 3/8"

- standard pipe, 1/4 x 1-3/8 inch

6шт.
