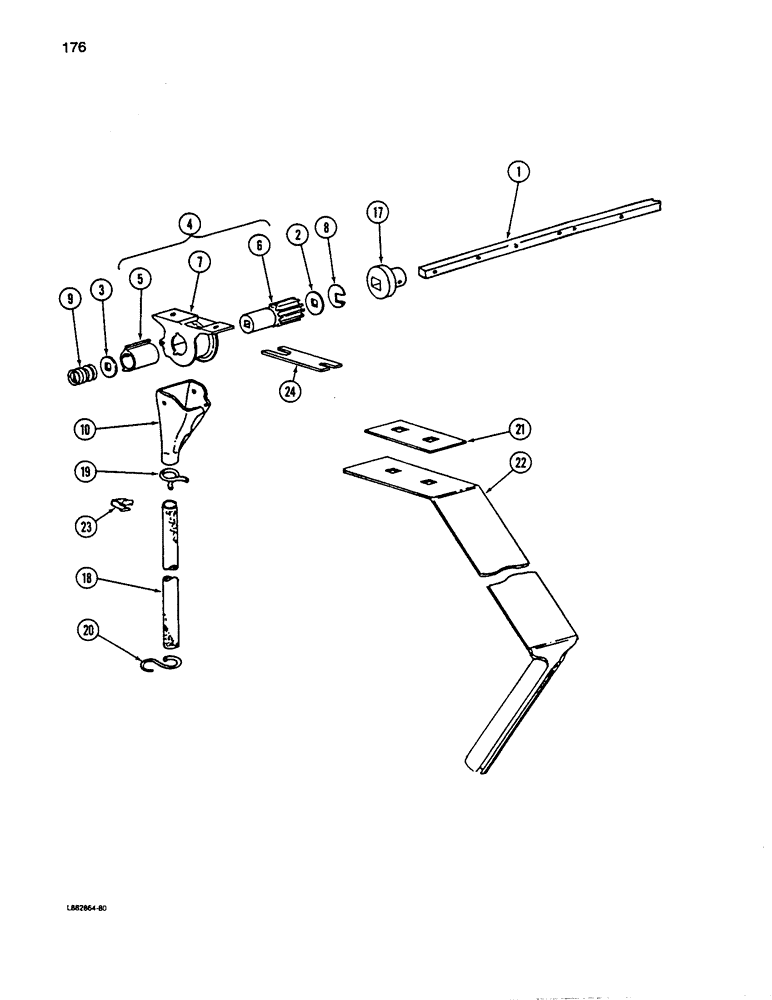

Запчасти Case IH 5100 (176) - GRASS SEED FEED

1

815619C1

DRIVE SHAFT

BAR - feed shaft (13 x 7)

1шт.

1

815620C1

DRIVE SHAFT

BAR - feed shaft (16 x 7)

1шт.

1

B15621C1

BAR - feed shaft (18 x 7)

2шт.

1

815622C1

DRIVE SHAFT

BAR - feed shaft (20 x 6)

2шт.

1

815623C1

DRIVE SHAFT

BAR - feed shaft (24 x 6)

2шт.

1

815624C1

DRIVE SHAFT

BAR - feed shaft (16 x 8)

2шт.

1

815625C1

DRIVE SHAFT

BAR - feed shaft (20 x 8)

2шт.

1

815626C1

DRIVE SHAFT

BAR - feed shaft (16 x 10)

2шт.

1

816689C1

DRIVE SHAFT

BAR - feed shaft, left (21 x 7)

1шт.

1

816690C1

DRIVE SHAFT

BAR - feed shaft, right (21 x 7)

1шт.

2

23051R1

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

- square hole, 11/32 x 3/4 x 1/64 inch

1шт.

3

23050R1

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 3/64 inch (1 per feed)

1шт.

4

600924R92

CUP ASSY.

CUP ASSEMBLY - grass seed (1 per feed)

1шт.

5

600923R2

BLOCK

COLLAR - feed cup cutoff

1шт.

6

601463R1

FINGER ASSY.

SHAFT - feed roll

1шт.

7

615750R92

SUPPORT ASSY.

CUP - feed

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

(2 per cup) Cross Pan Hd, 1/4"-20 x 1/2"

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4" (2 per cup)

1шт.

8

N32109

WASHER

- slotted, 11/32 x 3/4 x 1/64 inch

1шт.

9

N32176

SPRING

- feed

1шт.

10

603817R3

TUBE

HOUSING - seed feeder tube (1 per feed cup)

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

17

819227C1

SLEEVE

- feed shifter (1 per grass drive)

1шт.

104056

RIVET

- 1/8 x 7/8 inch

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - feeder, 23 inch (Order 997790R1 cut to desired length)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - feeder, 54 inch (Order 997790R1 cut to desired length)

1шт.

19

237585R1

HOSE CLAMP,#13, 13/16", Spring

CLAMP - seed tube (1 per feed cup) (replaces 2375BR1)

1шт.

20

1263691C1

HOOK

- seed tube end (1 per feed cup)

1шт.

21

815690C1

PLATE

BRACKET - seed holder mounting (1 per feed cup)

1шт.

22-

815689C1

HOLDER

- seed tube (1 per feed cup)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

23

819193C1

SPRING CLIP

CLAMP - tube U

1шт.

22815R1

WASHER

- flat, 29/32 x 1-1/4 x 1/64 inch

1шт.

24

818183C1

PROTECTIVE COVER

BRACKET - feed cover

1шт.

Hose 90 degree bend in the middle of the clip

1шт.

1263691C1 wire holder

1шт.

1263690C2 wire holder

1шт.

See SB 029-87 - See illustration 5200 catalog

1шт.
