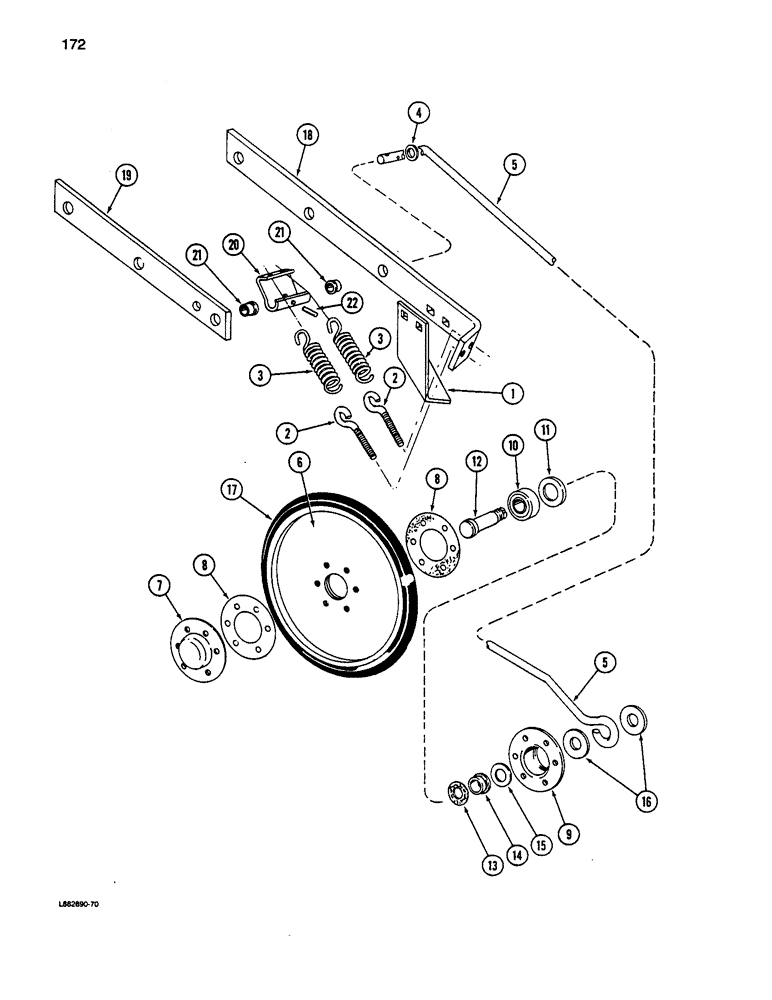

Запчасти Case IH 5100 (172) - SEED FIRMING WHEEL

1

819335C1

SUPPORT

- firming wheel

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

2

815452C1

EYEBOLT,5/16" - 18 x 3"

- firming wheel adjusting

2шт.

120376

NUT,5/16"-18, G5

4шт.

3

819979C1

COIL SPRING

SPRING - eyebo1t

2шт.

4

21375R1

WASHER

- flat, 17/32 x 1-1/4 x 11/64 inch

1шт.

5

819337C1

ROD

- firming wheel draw

1шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

815514C91

WHEEL ASSY.

WHEEL ASSEMBLY - seed firming

1шт.

6

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY - disc

1шт.

7

602990R1

CAP

- disc

1шт.

8

602992R1

GASKET

- retainer

2шт.

9

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

- 1/4 x 1/2 inch

6шт.

10

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSEMBLY - disc

1шт.

11

602994R1

FLANGE

- dirt seal

1шт.

12

602987R1

BOLT

BOLT - wheel

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1110

NUT,5/8"-18, G5

- hex 5/8 inch NF

1шт.

13

464628R1

SEAL

- dirt (Replaces 602993R1)

1шт.

14

602988R1

SPACER

- seal retainer

1шт.

15

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

16

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 7/64 inch

2шт.

17

622359R1

TYRE/TIRE

TIRE - seed firming wheel

1шт.

18

819339C1

SUPPORT

- draw rod

1шт.

19

819338C1

BAR

- draw rod

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

20

819336C3

SUPPORT

CHANNEL - spring

1шт.

21

819343C1

BUSHING

- pivot rod

2шт.

22

364436R1

PIN,3/16" x 1", Coiled

1шт.
