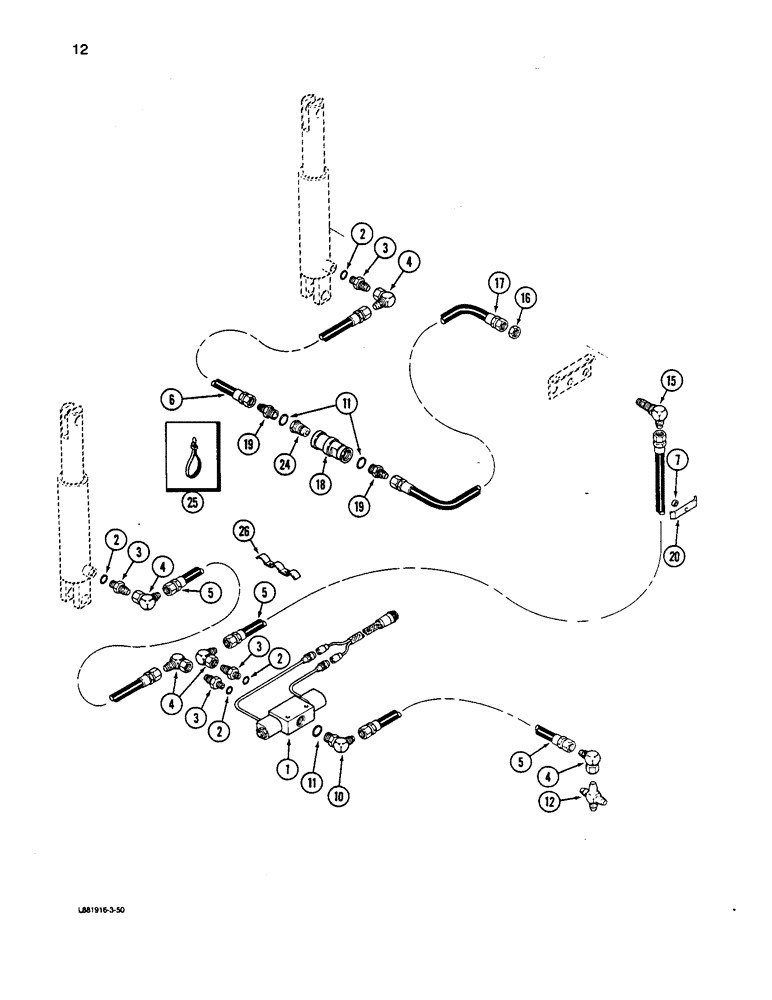

Запчасти Case IH 5100 (012) - MARKER HYDRAULICS, ELECTRONIC SELECTOR

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker control (See Page 41)

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

3

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - short, 1/2 to 3/8 inch tube

4шт.

4

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree

5шт.

5

841045C1

HOSE ASSY.

HOSE - hydraulic, 96 inch long

3шт.

6

1279598C1

HYDRAULIC HOSE

HOSE - hydraulic, 135 inch long

1шт.

7

309710C1

SPACER,10.7mm ID x 17.14mm OD x 15.9mm L

- 3/8 x 1/16 inch

4шт.

10

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- reducer 90 degree 5/8 to 1/2 inch tube

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch tube

2шт.

12

9403177

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - flared tube, 1/2 inch

1шт.

15

469997R1

ELBOW

- bulkhead, 90 degree

1шт.

16

9403294

NUT

- bulkhead union lock

1шт.

17

841083C1

HYDRAULIC HOSE

HOSE - hydraulic, 142 inch long

1шт.

18

1282338C91

COUPLING, QUICK, FEM

COUPLER - hose, female

1шт.

19

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - short, 5/8 to 1/2 inch tube

2шт.

20

851729C1

HOSE CLAMP

CLAMP - hose

4шт.

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

1272399C2

QUICK MALE COUPLING

COUPLER - hose, 7/8 NF, Self-Sealing, Male

1шт.

25

813579C1

CABLE TIE

STRAP - hose retaining

10шт.

26

1279B09C1

CLAMP - hose

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.
