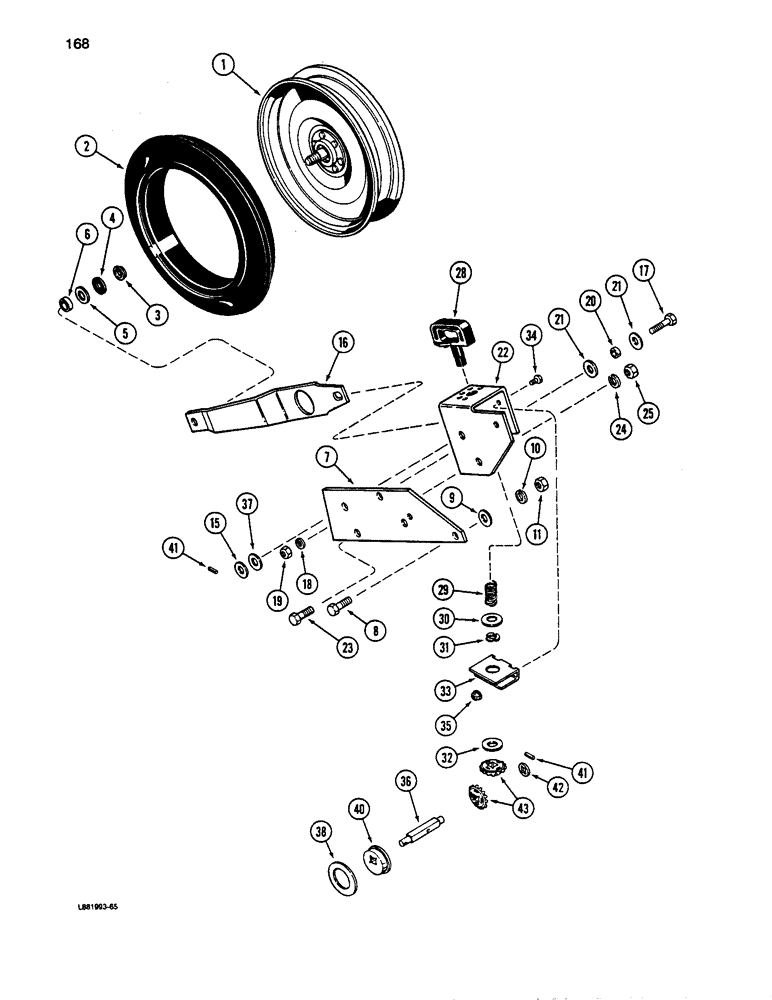

Запчасти Case IH 5100 (168) - DEPTH PRESS WHEEL

1

REF

INSTRUCTION

WHEEL ASSEMBLY - press (See Page 171)

1шт.

Ref #1 - is 1973102C1 Tire & Wheel 11/22/95

1шт.

2

842666C1

TYRE/TIRE

TIRE - press wheel

1шт.

3

602988R1

SPACER

- seal retainer

1шт.

4

46462BR1

SEAL - dirt

1шт.

5

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

6

610993R1

WASHER

WASHER - wheel spacer

1шт.

7

819518C2

BAR

PLATE - support

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch.2

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

192-105

LOCK WASHER,#6

NUT- hex, 1/2inch NC

1шт.

15

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

16

819446C1

DRAWBAR

- wheel

1шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

120377

NUT,3/8" - 16, Gr 5

1шт.

20

819596C1

SPACER, RING

SPACER - drawbar pivot

1шт.

21

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

2шт.

22

819519C1

HITCH BRACKET

BRACKET - sector index

1шт.

23

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

192-105

LOCK WASHER,#6

NUT - hex, 1/2 inch NC

1шт.

28

819532C1

HANDLE

- wheel adjusting

1шт.

29

819592C1

SPRING

- handle

1шт.

30

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

31

819678C1

RING

- handle retaining

1шт.

32

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

33

819988C1

SUPPORT

- adjusting gear

1шт.

34

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

35

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

2шт.

36

819531C1

PIN,12.7mm OD x 111mm L

- gear support

1шт.

37

22265R1

WASHER

- flat, 17/32 x 1-1/4 x 1/32 inch

1шт.

38

593438R1

WASHER,48.51mm ID x 68.58mm OD x 3.04mm Thk

- cam spacer

1шт.

40

819526C1

CAM

- eccentric

1шт.

41

19928R1

PIN,3/16" x 3/4", Coiled

2шт.

42

20731R1

SQ HOLE WASHER,17/32" x 1" x .060", Sq Hole

- square hole, flat, 17/32 x 1 x 1/16 inch

1шт.

43

819520C1

GEAR

- wheel adjusting

2шт.
