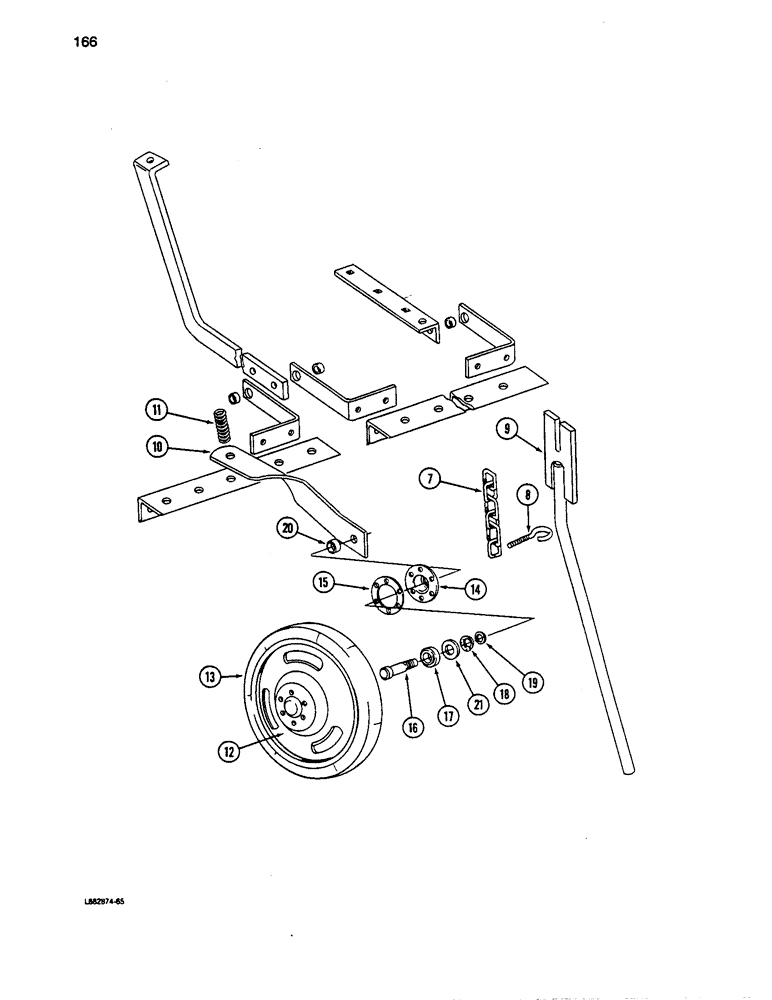

Запчасти Case IH 5100 (166) - GANG PRESS WHEEL, CONTD

7

592273R91

CHAIN (AG)

CHAIN - transport

2шт.

ref #7 (P/N 592273R91) - 1279006C1 back assy on new style

1шт.

8

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

- lifting tool retainer

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

- flat, 13/32 x 1 x 1/16 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

819123C1

TOOL

- gang frame lift

1шт.

10

819077C1

BAR

- press wheel draw

1шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

1шт.

11

VC682

VALVE SPRING

SPRING - drawbar

1шт.

12

819078C1

WHEEL,285.75mm OD x 47.75mm W

- press

1шт.

ref #12 (P/N 819078C1) - 1.88" x 11.25"

1шт.

13

600483R3

TYRE/TIRE

TIRE - press wheel

1шт.

14

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

NSS

NOT SOLD SEPARAT

RIVET - 1/4 x 3/4 inch (Order 1 pound package 990323R91)

1шт.

15

602992R1

GASKET

- bearing retainer

1шт.

16

602987R1

BOLT

BOLT - wheel

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

121358

YOKE

- hex, 5/8 inch NF

1шт.

17

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSEMBLY - press wheel

1шт.

18

602994R1

FLANGE

- dirt seal

1шт.

19

464628R1

SEAL

- dirt (Replaces 602993R1)

1шт.

20

591046R1

SPACER

- seal retainer

1шт.

21

602988R1

SPACER

RETAINER - seal

1шт.
