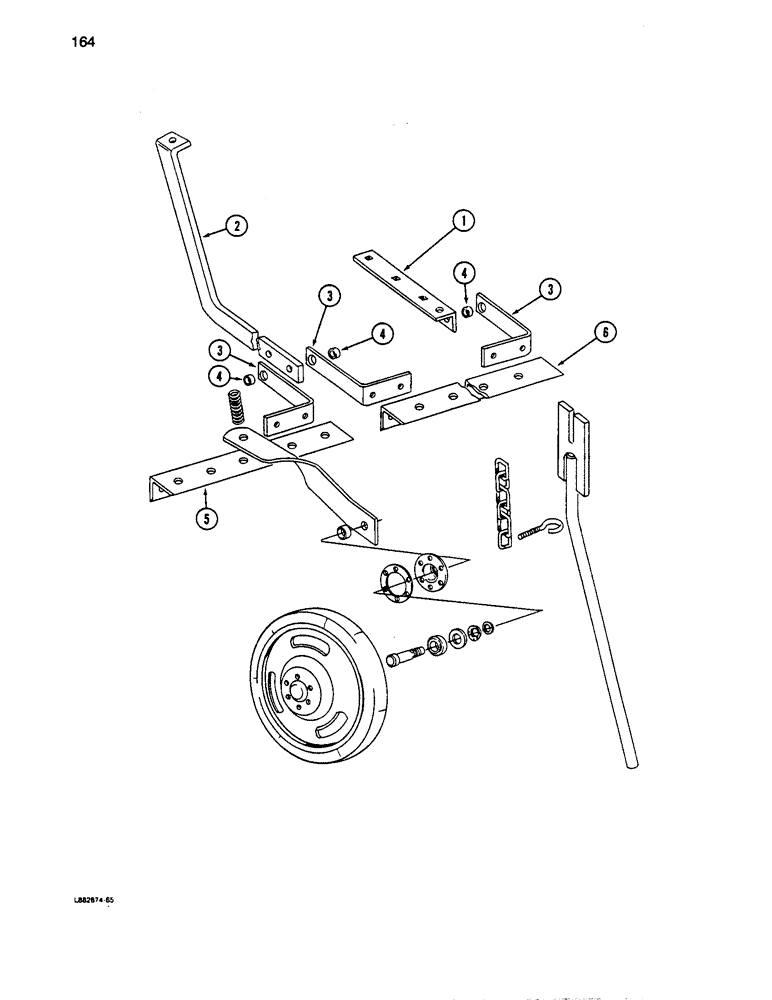

Запчасти Case IH 5100 (164) - GANG PRESS WHEEL

1

815726C1

ANGLE

- drawbar outer

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck 5/16 NC x 1 inch

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

2

815727C1

SUPPORT

- gang, left(16x7, 18 x 7, 16x8,20x 8 and 16x 10)

1шт.

2

815728C1

SUPPORT

- gang, right (16x7, 18 x 7, 16x 8,20x8 and 16x 10)

1шт.

2

815728C1

SUPPORT

- gang left (20 x 6, 24 x 6 and 21 x 7)

1шт.

2

815727C1

SUPPORT

- gang, right (20 x 6, 24 x 6 and 21 x 7)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

3

815729C1

ANGLE

- gang pivot

6шт.

ref #3 (P/N 815729C1) - Ret 3 for '88 & later models w/ twisted angles use 843360C1 RH

1шт.

843359C1 LH

1шт.

Arc '87 & earlier

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

4

27046B

SPACER,1/2" Pipe x 9/16"

- pivot

6шт.

5

815730C2

SUPPORT

ANGLE - gang mounting center (16 x 7, 18 x 7, 16 x 8, 20 x 8 and 16 x 10) 1

1шт.

5

B19466C1

ANGLE - gang mounting center (20 x 6, 24 x 6 and 21 x 7)

1шт.

6

815731C2

SUPPORT

ANGLE - gnag mounting, left(16x7, 18 x 7, 16x 8,20 x 8 and 16x 10)

1шт.

6

815732C2

SUPPORT

ANGLE - gang mounting, right(16x7, 18 x7, 16,x 8,20x 8 and 16x 10)

1шт.

6

819464C1

ANGLE BAR

ANGLE - gang mounting, left (20 x 6, 24 x 6 and 21 x 7)

1шт.

6

819465C1

ANGLE BAR

ANGLE - gang mounting, right (20 x 6, 24 x 6 and 21 x 7)

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

12шт.

-

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

Note - See C0788 for changes... 11/22/95

1шт.
