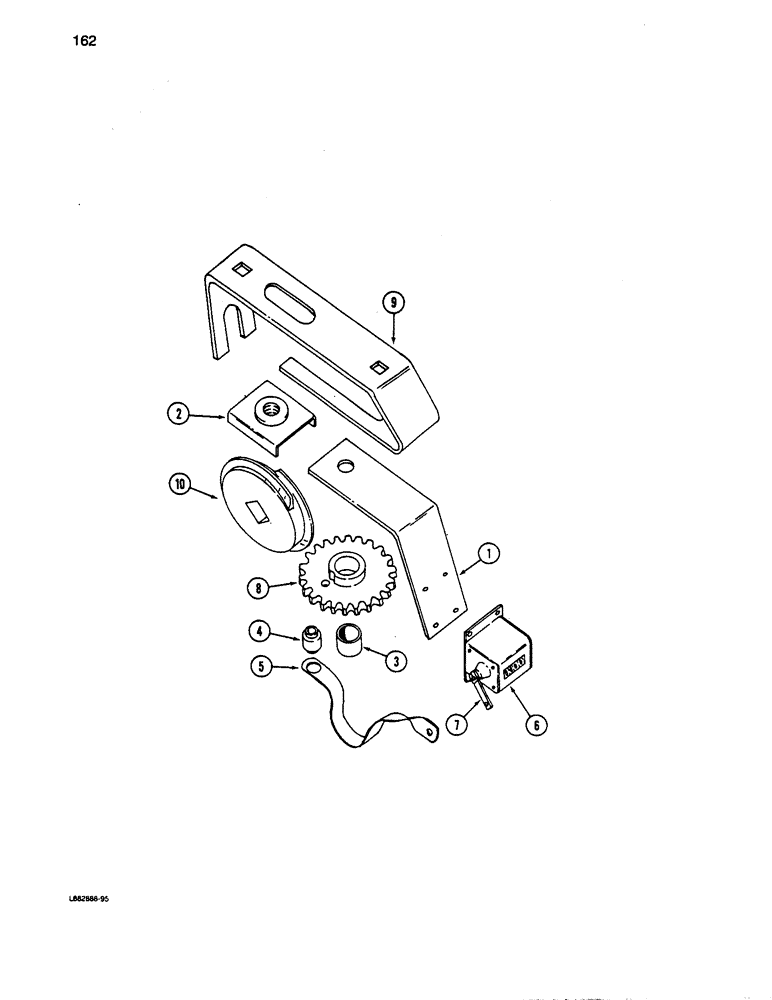

Запчасти Case IH 5100 (162) - COUNTER

1

599560R1

BRACKET

SUPPORT - counter

1шт.

2

596936R1

SUPPORT

- counter gear

1шт.

3

599705R1

SPACER

- gear

1шт.

4

609534R2

SPACER

- counter spring

1шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

- slotted round head machine No. 10-24 x 1-1/4 inch

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

607893R1

WASHER

- flat, 13/64 x 1/2 x 3/64 inch

1шт.

5

598970R2

SPRING

- acreage counter

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

PIN - cotter, 3/32 x 1/2 inch

1шт.

6

609535R91

COUNTER

- acreage

1шт.

7

816878C1

ARM

- acreage counter

1шт.

145-351

RIVET,But Hd, 1/8" x 7/16"

- brass, 1/8 x 7/16 inch

4шт.

8

815186C1

GEAR

- counter, 41 tooth (13 x 7)

1шт.

8

815185C1

GEAR

- counter, 34 tooth (16 x 7)

1шт.

8

815184C1

GEAR

- counter, 30tooth (20 x 6, 18 x 7 and 16 x 8)

1шт.

8

815183C1

GEAR

- counter, 26 tooth,(24 x 6 and 21 x 7)

1шт.

8

815182C1

GEAR

- counter, 24 tooth (20 x 8 and 16 x 10)

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

1шт.

9

596933R1

BRACKET

- counter gear worm

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 x 3/4 inch

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

10

604420R1

GEAR

- acreage counter worm

1шт.
