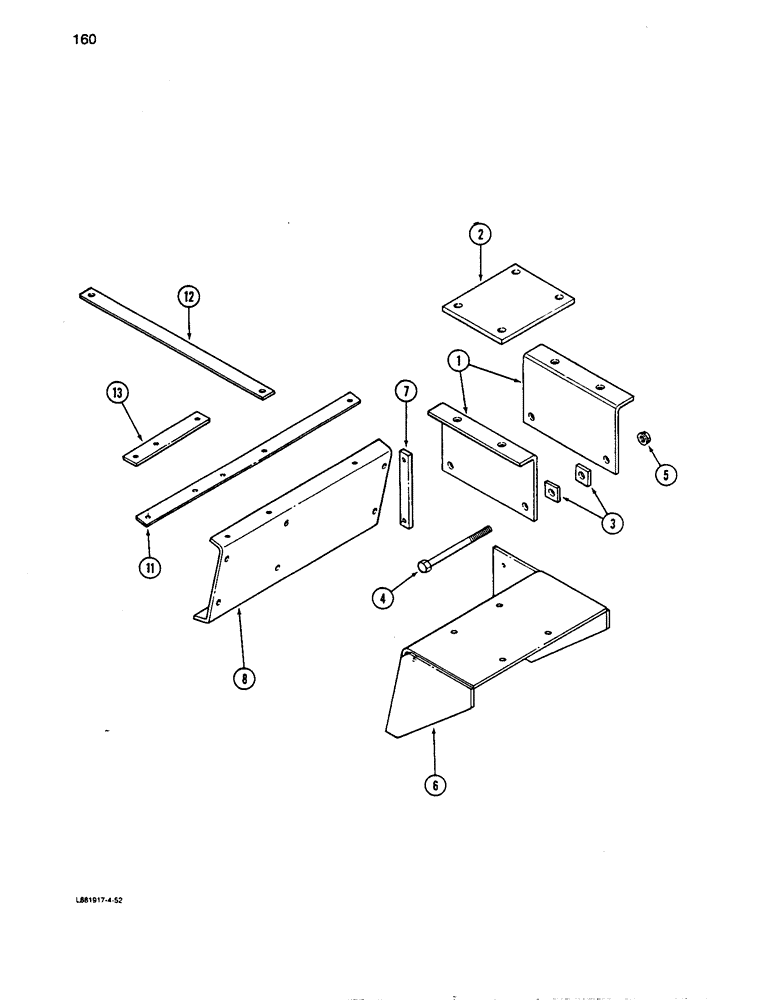

Запчасти Case IH 5100 (160) - DISC MARKER SUPPORTS

1

1279661C1

SUPPORT

BRACKET - lead drill marker

2шт.

2

1279662C1

PLATE

- marker

1шт.

3

1279575C1

SPACER, RING

SPACER - marker bracket

4шт.

4

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

- hex, 5/8 NC x 6-1/2 inch

2шт.

5

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

1279663C1

HITCH BRACKET

BRACKET - marker, left

1шт.

7

1279668C1

BRACKET

BRACE - backup, marker left

1шт.

8

1279669C1

REINFORCEMENT

BRACKET - reinforcement, marker left

1шт.

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- flange lock, 1/2 inch NC.2

1шт.

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

2шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

flange lock, 1/2 inch NC

8шт.

11

1279856C1

BAR

- reinforcement, top

1шт.

12

1279857C1

BAR

BRACE - tie bar

1шт.

13

1279968C1

BAR

- reinforcement

1шт.

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.
