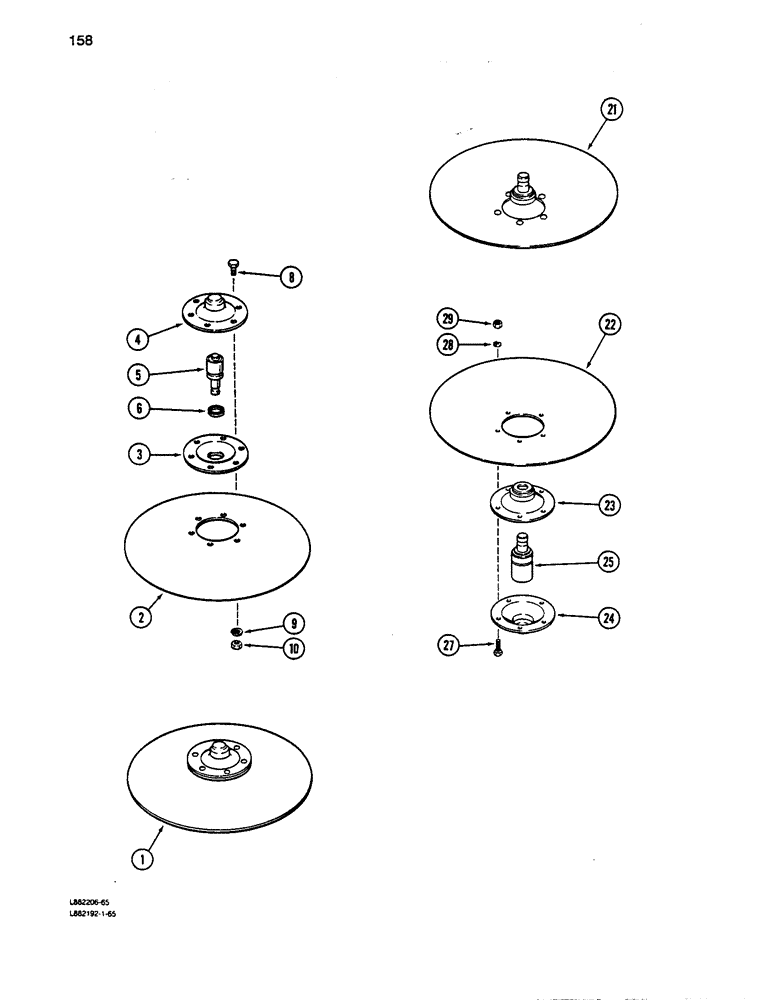

Запчасти Case IH 5100 (158) - MARKER DISC, RIGID

1

1264358C1

DISC,13"

ASSEMBLY - marker

2шт.

2

469372R1

DISC,13"

- marker

1шт.

3

47B035R1

HOUSING - bearing, inner

1шт.

4

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

- bearing, outer

1шт.

5

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING - ball

1шт.

6

480679R1

WASHER

- seal felt

1шт.

NSS

NOT SOLD SEPARAT

RIVET - retaining (Order Ref. 8, 9, and 10)

6шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

10

120376

NUT,5/16"-18, G5

6шт.

1264358C1

DISC,13"

ASSEMBLY - marker, 6 holes (See Ref. 1)

2шт.

21

1337981C2

DISC

ASSEMBLY - marker, 5 holes , folding

2шт.

22

31283R1

DISC,13", FLAT CENTER

- marker , folding

1шт.

23

472020R1

BEARING HOUSING,19.66 mm ID x 38.125 mm OD

HOUSING - bearing, inner , folding

1шт.

24

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

- bearing, outer , folding

1шт.

25

472022R91

BEARING, BALL,18.961 mm ID x 38.1 mm OD x 91.13 mm

BEARING - ball , folding

1шт.

NSS

NOT SOLD SEPARAT

RIVET - retaining (Order 27, 2B and 29) , folding

5шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Folding Hex, 1/4"-20 x 3/4", G5, Full Thd

51шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Folding 1/4"

5шт.

29

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC , folding

5шт.
