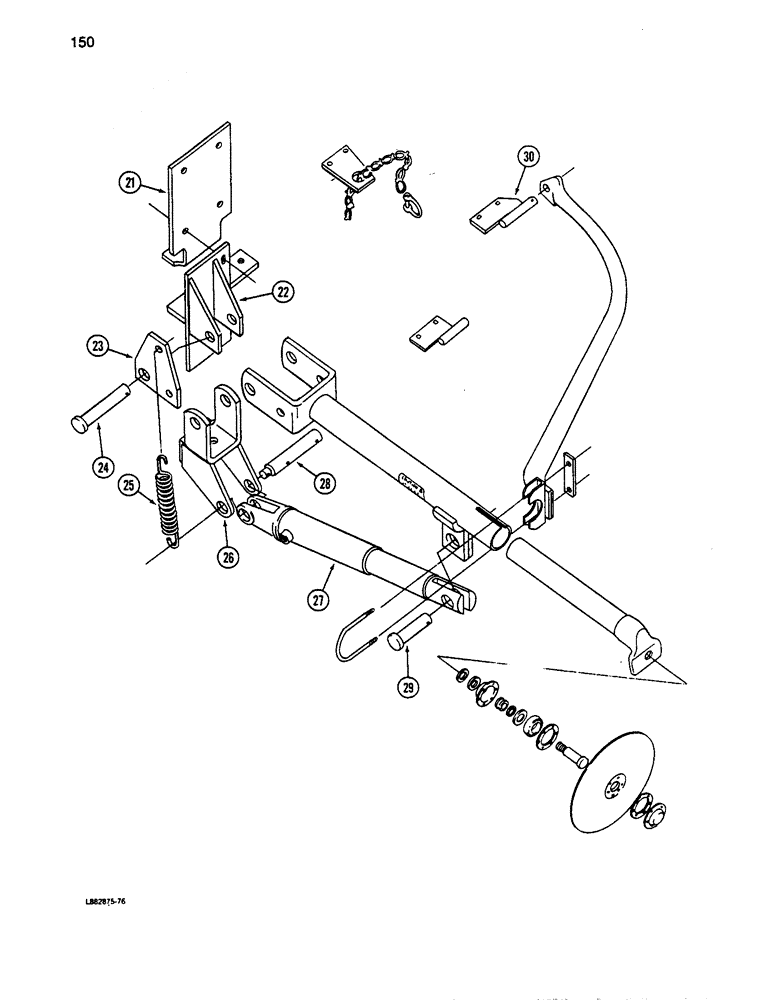

Запчасти Case IH 5100 (150) - DISC MARKER, HYDRAULICALLY CONTROLLED, CONTD

21

817595C1

SUPPORT

- reinforcing

1шт.

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

- flat, 11/32 x 1 x 3/32 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

22

818489C1

SUPPORT ASSY.

SUPPORT - marker front pivot, left (Shown)

1шт.

22

817798C1

SUPPORT ASSY.

SUPPORT - marker front pivot, right (Used in right marker set-up only)

1шт.

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

20893R1

WASHER

- flat, 11/32 x 1 x 3/32 inch

3шт.

120376

NUT,5/16"-18, G5

3шт.

23

817697C1

PLATE

BAR - spring anchor

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

24

23318R1

HEADED PIN,3/4" x 5"

PIN - headed, 3/4 x 5-1/4 inch

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

25

819861C1

COIL SPRING

SPRING - cylinder helper

1шт.

26

817796C1

ANCHOR

- cylinder pivot

1шт.

27

548207R93

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Replaced by 145622C91, See Cylinder 1 catalog for component breakdown)

1шт.

461181C92

KIT - O-ring and seal, service

1шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker lift (See Page 37)

1шт.

27

841038C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - marker lift (Optional) (See Cylinder 1 catalog for component breakdown)

1шт.

843147C1

SEAL KIT

KIT - O-ring and seal service

1шт.

28

817696C1

PIVOT PIN

PIN - cylinder pivot

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

464623R1

WASHER

- flat, 21/32 x 1-1/2 x3/32 inch

1шт.

29

22964R1

HEADED PIN,1" x 2 7/16"

PIN - headed, 1 x 2-7/16 inch

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

30

843222C1

PIVOT

- marker rear (See Note)

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck 5/16 x 1 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32inch

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.
