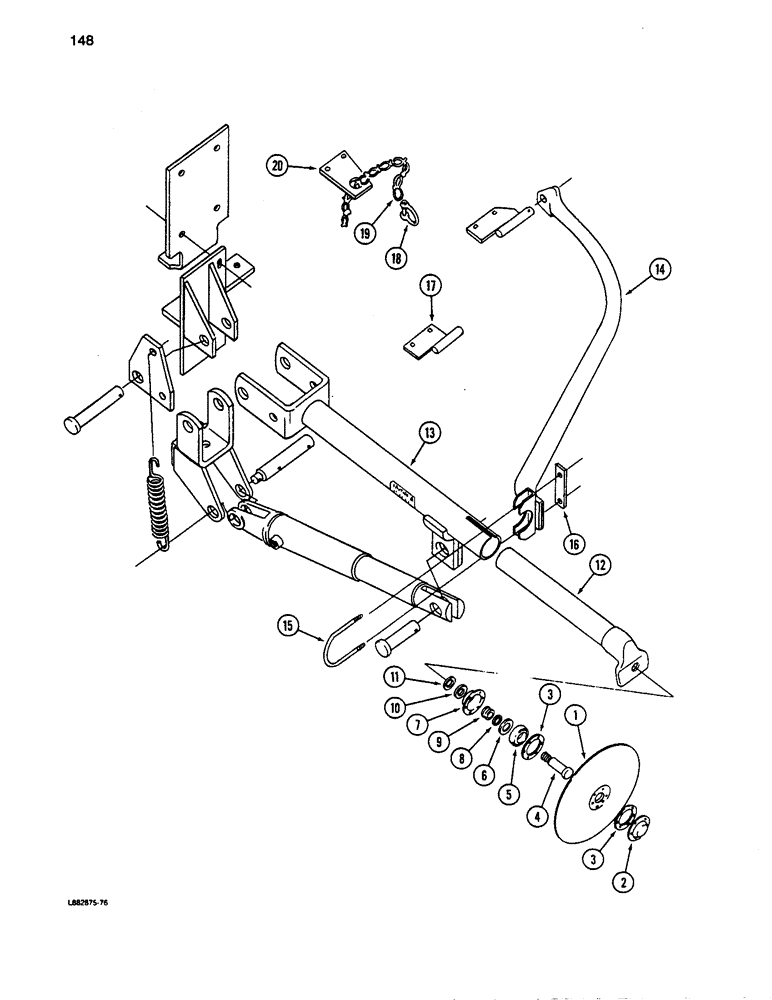

Запчасти Case IH 5100 (148) - DISC MARKER, HYDRAULICALLY CONTROLLED

815746C92

DISC

ASSEMBLY - marker

1шт.

1

603004R2

PLOW DISC

DISC - marker

1шт.

2

602990R1

CAP

- disc

1шт.

3

602992R1

GASKET

- bearing retainer

2шт.

4

602987R1

BOLT

BOLT - disc

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-110

- hex, 5/8 inch NF

1шт.

5

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

6

602994R1

FLANGE

- seal

1шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

- button head, 1/4 x 1/2 inch

6шт.

b

464628R1

SEAL

- dirt (Replaces 602993R1)

1шт.

9

602988R1

SPACER

- dirt seal retainer

1шт.

10

591714R1

WASHER

- flat 23/32 x 1-1/4 x 3/64 inch

1шт.

11

21712R1

WASHER

- flat, 23/32 x 1-1/2 x 3/32 inch

1шт.

12

596516R11

TUBE,1767.8, 33 mm Length

- disc telescoping

1шт.

13

840907C91

SUPPORT TUBE

TUBE - marker

1шт.

113116C1

CAUTION DECAL,Caution Stay Clear Markers Actuate Automaticlly

DECAL - caution

2шт.

14

818488C1

BRACE

- marker support (See Note A)

1шт.

14

843224C1

BRACE

- marker support (See Note B)

1шт.

15

596521R2

BOLT,U, 5/16" - 24 x 3 3/4"

U-BOLT - tube clamping

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

129-122

NUT,5/16"-24, G5

2шт.

16

816581C1

BAR

- U-bolt clamping

1шт.

17

815735C1

PIVOT

- marker rear (See Note,A)

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck 5/16 x 1 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

467750R1

WASHER

- flat, 25/32 x 1-1/2 x 3/32 inch

1шт.

18

819167C1

SHACKLE

- chain, 1/4 inch

1шт.

19

NSS

NOT SOLD SEPARAT

CHAIN - marker lock-up (Replaces 819168C1)(See Note C)

1шт.

20

815747C1

BAR

- lock-up chain

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21309R1

WASHER

- flat, 13/32 x 7/8 x 5/32 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NUT - hex, 3/8 inch NC NOTE A: Used with basic drills. For drills with 20 inch wheels for England. NOTE B: For drills with 28 inch wheels for England. NOTE C: For service order locally 17 links, approximately 36 inch of number 2/0 tension chain, double or twin loop.

1шт.
