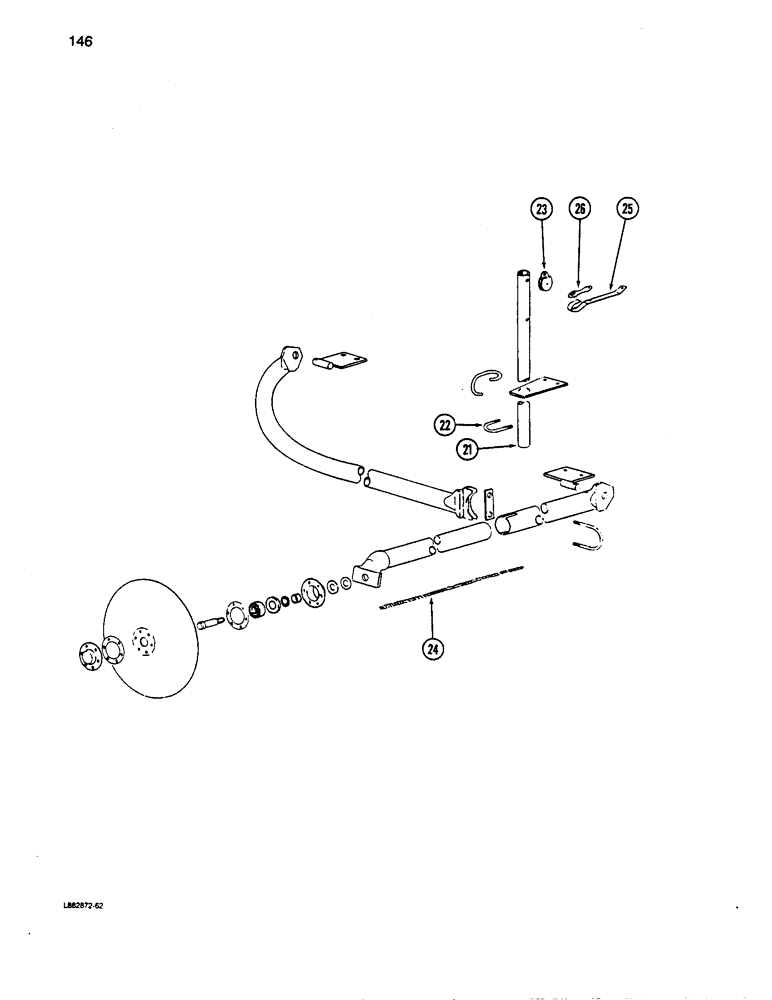

Запчасти Case IH 5100 (146) - DISC MARKER, MANUAL, ROPE TYPE, CONTD

21

815748C1

TUBE,33.4 mm OD, 980.4 mm Length

MAST - pipe, rope pulley

1шт.

22

18344K

BOLT,3/8" - 16 x 2 1/8", Steel

U-BOLT - mast pipe

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

23

819043C91

PULLEY

- rope

2шт.

132-356

COTTER PIN,3/8" x 3"

Pin. Split (Cotter), 3/8" x 3"

2шт.

24

NSS

NOT SOLD SEPARAT

ROPE - sisal, 3/8 x 42 foot (Furnish locally)

1шт.

25

615712R91

GUIDE

GUI0E ASSEMBLY - disc marker rope

1шт.

26

FA4916

SPRING

- rope guide

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT - round head square neck 3/8 NC x 3/4 inch

1шт.

21752R1

WASHER

- lock, 3/8 inch

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

815746C92

DISC

ASSEMBLY. marker (Includes Ref. 8,9,11 thru 15)

1шт.
