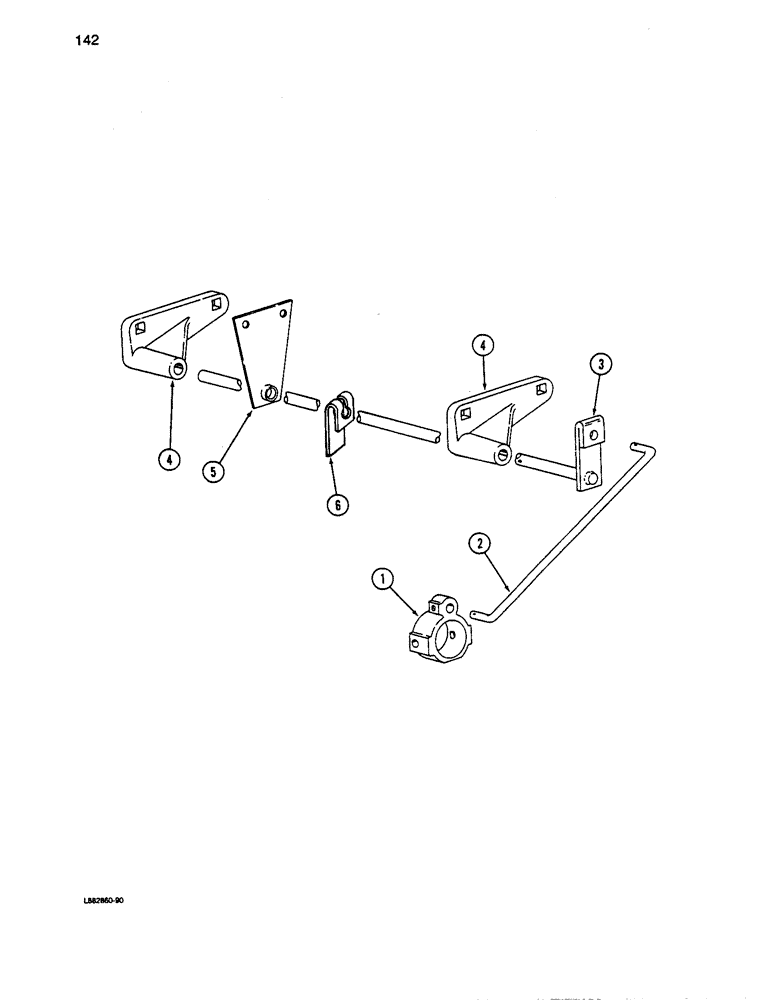

Запчасти Case IH 5100 (142) - GRAIN AGITATOR

1

815779C1

CRANK

Agitator (replaces B15779c1)

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

2

815780C1

ROD

Agitator crank

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

619856R1

WASHER

Flat, 13/32 x 1 x 3/64 inch

2шт.

3

NSS

NOT SOLD SEPARAT

ROD - agitator (13 x 7)(See Note A)

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - agitator (16 x 7)(See Note B)

1шт.

3

815898C1

ROD

Agitator (20 x 6, 18 x 7 and 16 x 8)

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - agitator (24 x 6 and 21 x 7)(See Note C)

1шт.

3

815781C1

ROD

Agitator (20 x 8 and 16 x 10)

1шт.

132-344

COTTER PIN,3/16" x 1"

1шт.

178374R1

WASHER

Flat, 17/32 x 1-1/4 x 3/64 inch

1шт.

4

815784C1

BEARING HOUSING

BEARING - agitator rod

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

4шт.

192-21

LOCK WASHER,3/8"

4шт.

20803R1

WASHER

Flat, 13/32 x 1 x 7/64 inch

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

5

B15785C1

SUPPORT - agitator rod

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

120376

NUT,5/16"-18, G5

4шт.

6

819322C1

FINGER

Agitator (1 per feed)

1шт.

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

(1 per finger)

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

21784R1

WASHER

Flat, 17/64 x 1/2 x 3/64 inch

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

NOTE

NOTE A: For service order 1-815898C1 and cut to 98-1/4 inches in length. NOTE B: For service order 1-815898C1 and cut to 11B-1/4 inches in length. NOTE C: For service order 1-815781C1 and cut to 151-1/4 inches in length.

1шт.
