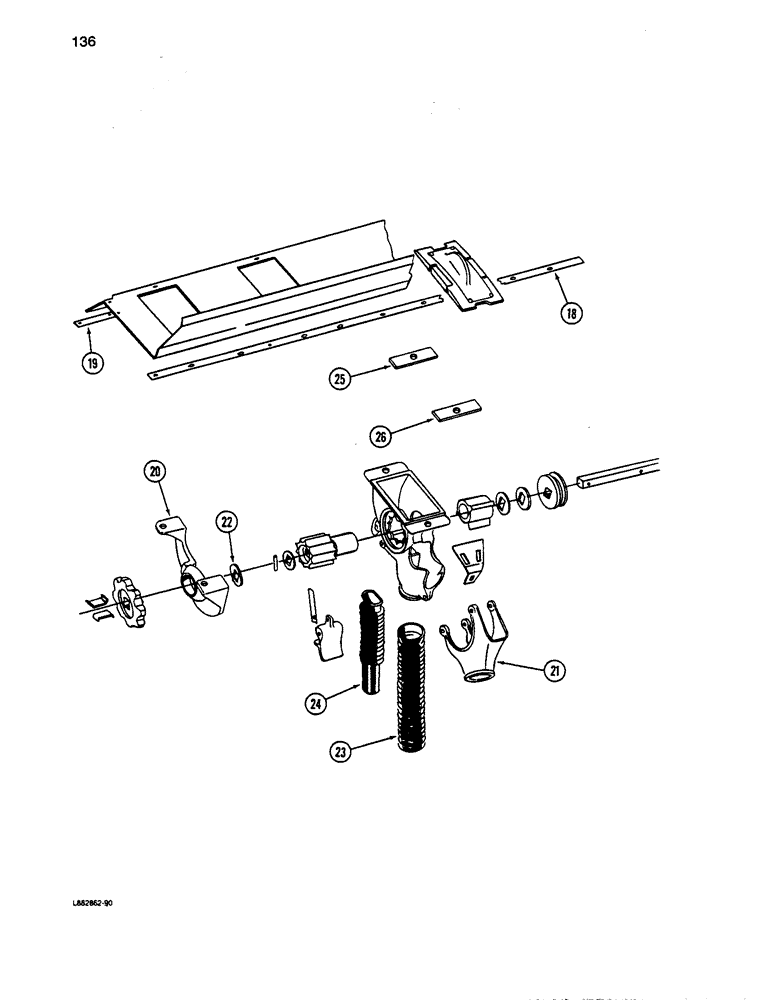

Запчасти Case IH 5100 (136) - GRAIN FEED, CONTD

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(13x7) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 x 3/4 inch

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

18

815316C1

BAR

- feed cup guide rear (13 x 7)

1шт.

18

815317C1

BAR

- feed cup guide rear (16 x 7)

2шт.

18

815316C1

BAR

- feed cup guide rear (18 x 7)

2шт.

18

815319C1

BAR

- feed cup guide rear (20 x 6)

2шт.

18

815320C1

BAR

- feed cup guide rear (24 x 6)

2шт.

18

819089C2

BAR

- feed cup guide rear (16 x 8)

2шт.

18

815322C1

BAR

- feed cup guide rear (20 x 8)

2шт.

18

815323C3

BAR

- feed cup guide rear (16 x 10)

2шт.

18

816707C1

BAR

- feed cup guide rear (21 x 7)

2шт.

19

816938C1

BAR

- feed cup guide front (13 x 7)

1шт.

19

816939C1

BAR

- feed cup guide front (16 x 7)

2шт.

19

816940C1

BAR

- feed cup guide front (18 x 7)

2шт.

19

816974C1

BAR

- feed cup guide front (20 x 6)

2шт.

19

816975C1

BAR

- feed cup guide front (24 x 6)

2шт.

19

816942C1

BAR

- feed cup guide front (16 x 8)

2шт.

19

816943C1

BAR

- feed cup guide front (20 x 8)

2шт.

19

816944C3

BAR

- feed cup guide front (16 x 10)

2шт.

19

816941C1

BAR

- feed cup guide front (21 x 7)

2шт.

20

815499C2

HANGER

- grass seed drive sprocket (1 per1 drive)

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- hex, 5/16 NC x 7/8 inch (2 per hanger)

1шт.

-

611344R1

WASHER

- flat, 11/32 x 7/8 x 3/64 inch

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

21

815805C91

CUP

KIT - gran seed viewing cup (See1 Note)

1шт.

132-104

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), 3/16" x 3"

48шт.

22

N11791

WASHER

- grass seed drive sprocket

1шт.

23

606146R2

TUBE,1.25" ID, 1.906" OD, 44, 9" Length

- grain seed (Use with single disk furrow opener)

1шт.

24

819354C1

TUBE

- grain seed (Use with double disk steel boot furrow opener)

1шт.

25

90987C1

BAR

- feed cup spacer

1шт.

26

90988C1

BAR

- feed cup spacer

1шт.
