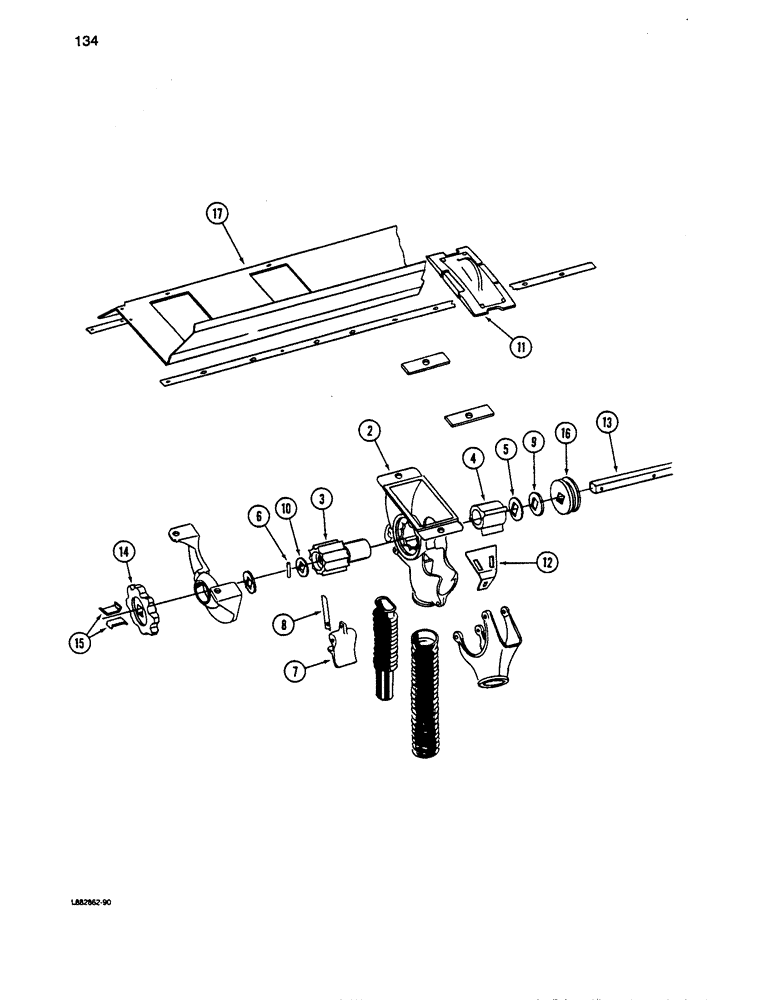

Запчасти Case IH 5100 (134) - GRAIN FEED

603816R93

CUP

ASSEMBLY - feed

1шт.

2

NSS

NOT SOLD SEPARAT

CUP ASSEMBLY -

1шт.

3

603111R1

ROLLER

SHAFT - fluted roll

1шт.

4

603112R1

BLOCK

- shut off

1шт.

5

602106R1

SQ HOLE WASHER

- square hole, 21/32 x 1-11/64 x 1/64 inch

4шт.

6

603134R1

PIN,4.76mm OD x 29.37mm L

- roll, feed cup

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

- hex, 5/16 NC x 1-1/4 inch (2 per feed cup)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

- flat, 11/32 x 3/4 x 1/16 inch

1шт.

120376

NUT,5/16"-18, G5

(2 per feed cup) 5/16"-18, G5

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

7

603108R21

BOTTOM

ASSEMBLY - feed cup dump (1 per feed cup)

1шт.

8

603178R1

LATCH

- dump bottom

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

132-104

COTTER PIN,3/16" x 3"

Pin, Split (Cotter), , 1 per bottom 3/16" x 3"

1шт.

9

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch (1 per feed cup)

1шт.

10

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

- feed cup spring

1шт.

11

818335C1

COVER ASSY

COVER ASSEMBLY - grain feed (replaces 81)

1шт.

12

606034R1

GUARD

PLATE - grain feed

1шт.

13

815286C2

BAR

- feed shaft (13 x 7)

1шт.

13

815287C2

BAR

- feed shaft (16 x 7)

1шт.

13

815288C2

BAR

- feed shaft, left (18 x 7)

1шт.

13

815289C2

BAR

- feed shaft, right (18 x 7)

1шт.

13

815290C2

BAR

- feed shaft, left (20 x 6)

1шт.

13

815291C2

BAR

- feed shaft, right (20 x 6)

1шт.

13

815292C2

BAR

- feed shaft, left (24 x 6)

1шт.

13

815293C2

BAR

- feed shaft, right (24 x 6)

1шт.

13

B15294C2

BAR - feed shaft, left (16 x 8)

1шт.

13

815295C2

BAR

- feed shaft, right (16 x 8)

1шт.

13

815296C2

BAR

- feed shaft, left (20 x 8)

1шт.

13

815297C2

BAR

- feed shaft, right (20 x 8)

1шт.

13

815298C2

BAR

- feed shaft, left (16 x 10)

1шт.

13

815299C2

BAR

- feed shaft, right (16 x 10)

1шт.

13

816704C2

SHAFT

BAR - feed shaft, left (21 x 7)

1шт.

13

816705C2

SHAFT

BAR - feed shaft, right (21 x 7)

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), (1 per feed) 3/16" x 1 1/2"

1шт.

14

815324C1

DRIVE SPROCKET

SPROCKET - grass seed drive (1 per drive)

1шт.

15

815803C1

CLIP

- sprocket retaining (2 per sprocket)

1шт.

16

604420R1

GEAR

- acreage counter worm

1шт.

17

816958C1

BOTTOM

SECTION - grain bottom partition (13 x 7)

1шт.

17

816959C1

BOTTOM

SECTION - grain bottom partition (16 x 7)

1шт.

17

816960C1

BOTTOM

SECTION - grain bottom partition (18 x 7)

1шт.

17

816956C1

BOTTOM

SECTION - grain bottom partition (20 x 6)

1шт.

17

816957C1

BOTTOM

SECTION - grain bottom partition (24 x 6)

1шт.

17

816962C1

BOTTOM

SECTION -grain bottom partition,(16 x 8)

1шт.

17

816963C1

BOTTOM

SECTION - grain bottom partition (20 x 8)

1шт.

17

816964C1

BOTTOM

SECTION - grain bottom partition (16 x 10)

1шт.

17

816961C1

BOTTOM

SECTION - grain bottom partition (21 x 7)

1шт.
