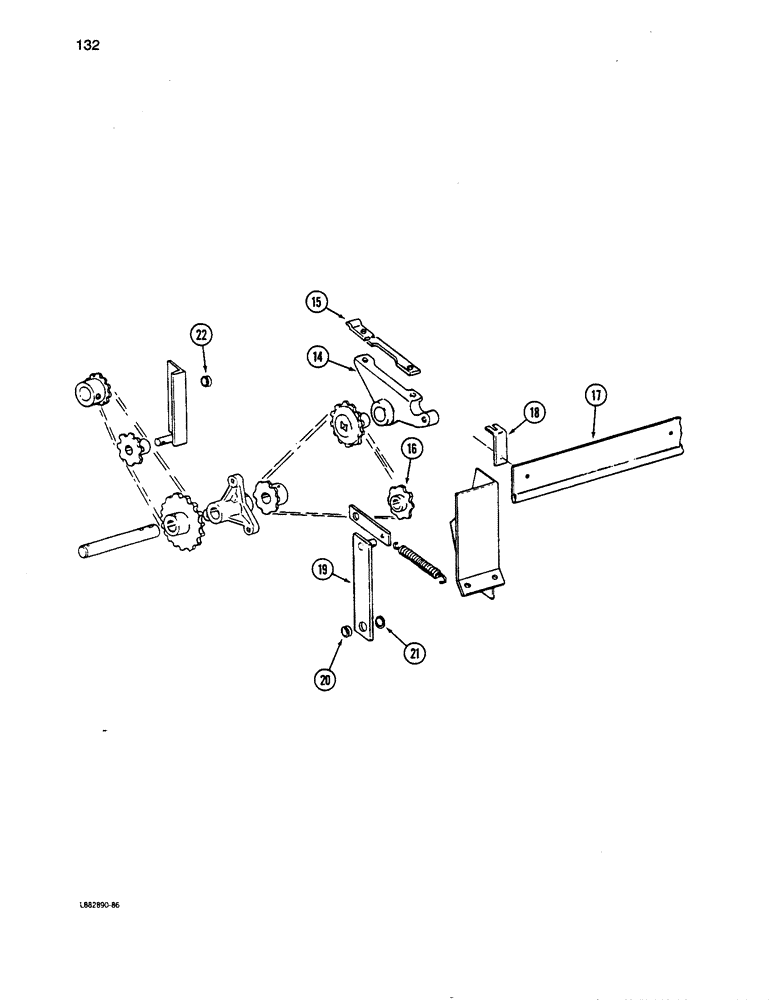

Запчасти Case IH 5100 (132) - FERTILIZER DRIVE, CONTD

14

815450C1

BRACKET

BEARING - fertilizer feed drive left (1 per drive)

1шт.

14

815451C1

BRACKET

BEARING - fertilizer feed drive right (1 per drive)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(2 per bearing) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

15

B15453C1

HINGE - drop bottom (1 per drive)

1шт.

16

819458C1

DRIVE SPROCKET

SPROCKET - chain tightener 8 tooth (1 per drive)

1шт.

17

816880C1

SHIELD

- fertilizer feed, 110 inch (16 x 7)

1шт.

17

818031C1

SHIELD

- fertilizer feed, 90 inch (13 x 7)

1шт.

17

816881C1

SHIELD

- fertilizer feed, 65-45/64 inch left (21 x 7)

1шт.

17

816882C1

SHIELD

- fertilizer feed, 72-39/64 inch right (21 x 7)

1шт.

17

843271C1

SHIELD

- fertilizer feed, 69-3/64 inch (24 x 6)

2шт.

17

841046C1

SHIELD

- fertilizer feed, 59-39/64 inch (20 x 6) (For drills used in England)

2шт.

18

816879C1

SUPPORT

- fertilizer feed shield (Drills used in England) (5 used 13x 7; 6 used 16x7; 8 used 21 x 7, 20x6, 24x6)

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(1 per support) Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

19

816988C1

BRACKET

- drive chain tightener (1 per drive)

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(1 per bracket) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

UAR 1/2"-13, G5

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), (1 per bracket) 3/16" x 1"

1шт.

20

612380R1

SPACER

- tightener bracket pivot (1 per drive)

1шт.

21

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 3/32 inch (2 per drive)

1шт.

22

359105R1

SPACER,3/8" X-Strng Pipe x 1/2"

- chain tightener bracket (For use with two drill hitch)

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT - round head square neck, 3/8 NC x 1-1/4 inch

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
