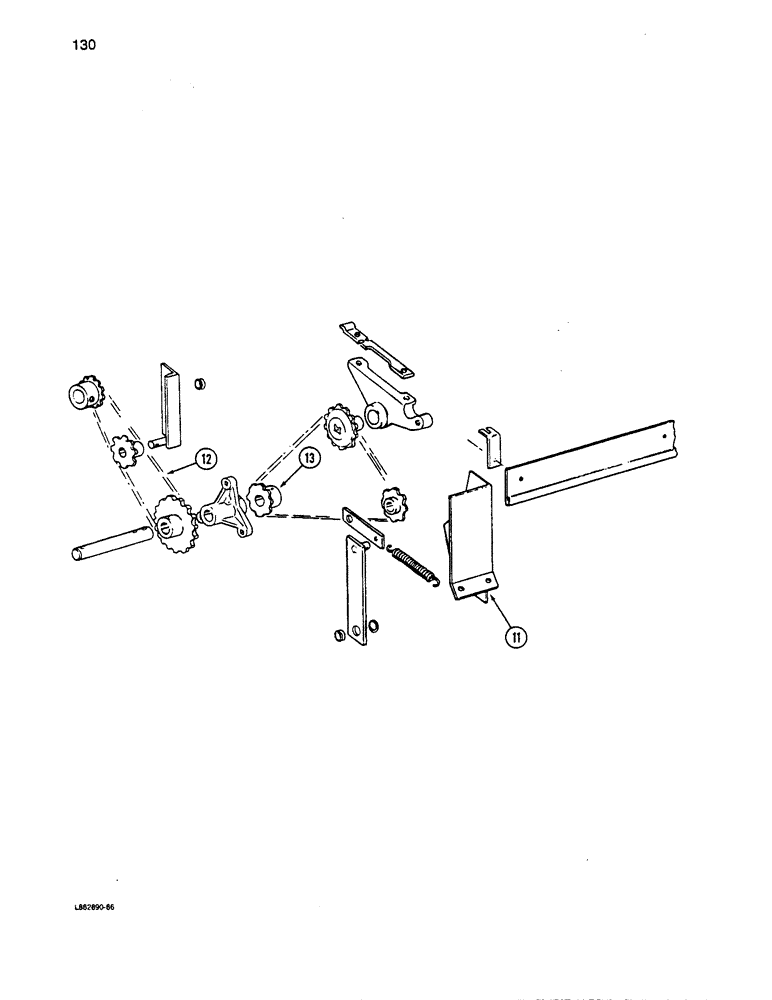

Запчасти Case IH 5100 (130) - FERTILIZER DRIVE, CONTD

11

816763C1

SHIELD

- fertilizer drive left(13x7, 16x7,21 x 7,20x6, 24x6) (See Note A)

1шт.

11

816885C1

SHIELD

- fertilizer drive right (21 x 7, 20 x 6 and 24 x 6)(See Note A)

1шт.

11

843205C1

SHIELD

- fertilizer drive left (20 x 6, 13 x 7 and 16 x 7)(See Note B)

1шт.

11

843206C1

SHIELD

- fertilizer drive right (20 x 6)(See Note B)

1шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 x 1 inch (2 per shield)

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive, regular speed drive 8 tooth drive sprocket to 16 tooth driven (See Note C)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive, special speed drive 8 tooth drive sprocket to 8 tooth driven (See Note D).UAR

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive, special speed drive 8 tooth drive sprocket to 32 tooth driven (See Note E)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive, special speed drive 16 tooth drive sprocket to 16 tooth driven (See Note F)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive, special speed drive 16 tooth drive sprocket to 32 tooth driven (See Note G)

1шт.

12

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - jackshaft drive, special speed drive 16 tooth drive sprocket to 8 tooth driven (See Note C)

1шт.

13

815449C1

DRIVE SPROCKET

SPROCKET - fertilizer feedshaft 8 tooth (1 per drive)

1шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (1 per sprocket)

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4" NOTE A: Drills with 20 inch wheels for England. NOTE B: Drills with 28 inch wheels for England.

1шт.

NOTE C: For service order 34 links from bulk 569088R91 chain (10 ft. roll) and 2-4571 13R91 connecting link and 1-4571 14R91 offset link. NOTE D: For service order 31 links from bulk 56908BR91 chain (10 ft. roll) and 2-4571 13R91 connecting link and 1-4571 14R91 offset link. NOTE E: For service order 43 links from bulk 569088R91 chain (10 ft. roll) and 3-4571 13R91 connecting link and 1 -4571 14R91 offset link. NOTE F: For service order 38 links from bulk 569088R91 chain (10 ft. roll) and 2-4571 13R91 conne

1шт.
