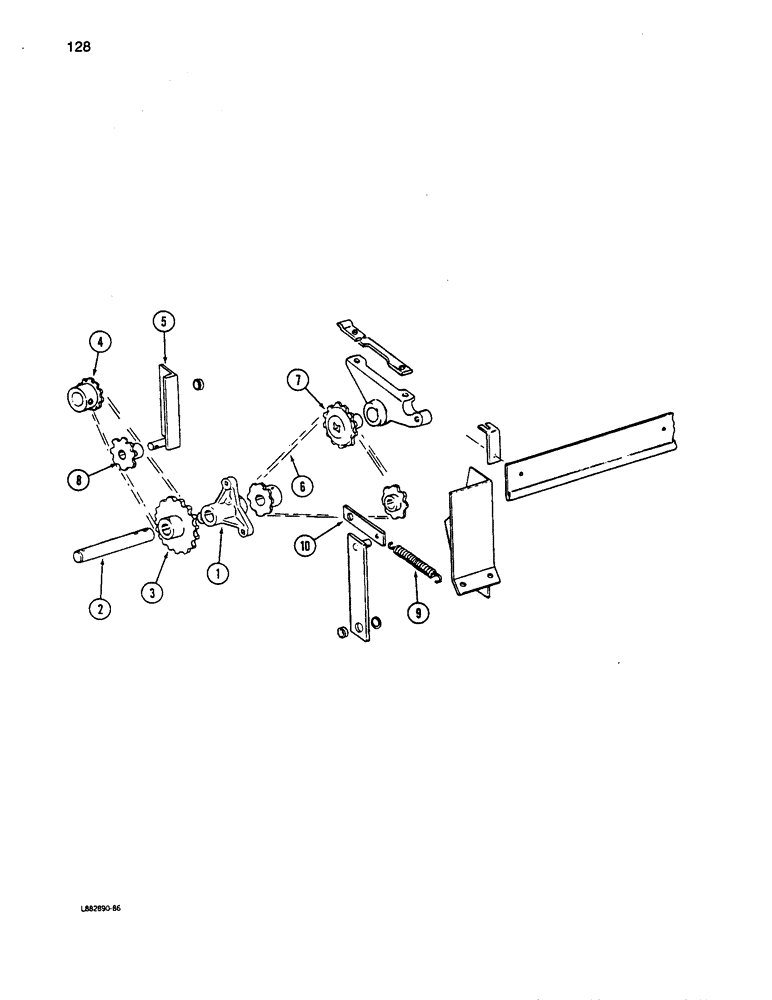

Запчасти Case IH 5100 (128) - FERTILIZER DRIVE

1

815440C1

BEARING HOUSING,1.005" ID x 2.55"

BEARING - jackshaft pin (1 per drive)

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch (3 per bearing).UAR

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

2

815441C1

PIN,25.4mm OD x 161.8mm L

- fertilizer drive jackshaft (1 per sprocket)

1шт.

3

815442C1

DRIVE SPROCKET

SPROCKET - jackshaft driven, 16 tooth regular speed (1 per drive)

1шт.

3

815449C1

DRIVE SPROCKET

SPROCKET - jackshaft driven, 8 tooth fast speed (1 per drive)

1шт.

3

815772C1

DRIVE SPROCKET

SPROCKET - jackshaft driven, 32 tooth slow speed (1 per drive)

1шт.

378480R1

HEADED PIN,5/16" x 1 7/8"

PIN - headed, 5/16 x 1-7/8 inch (1 per sprocket)

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

815141C1

DRIVE SPROCKET

SPROCKET - fertilizer drive 8 tooth, regular speed (1 per drive)

1шт.

4

815771C1

DRIVE SPROCKET

SPROCKET - fertilizer drive, 16 tooth, special speed (1 per drive) (Must be used with slow speed grain drive sprocket)

1шт.

4

815771C1

DRIVE SPROCKET

SPROCKET - fertilizer drive 16 tooth, soybean (1 per drive) (Use with 14 tooth grain driven sprocket, also order 457114R91 external pitch offset link, 8 per drive)

1шт.

U5356

HEADED PIN,9.53mm OD x 57.15mm L

PIN - headed, 3/8 x 2-1/4 inch (1 per sprocket)

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

5

815443C2

BRACKET

- chain tightener, left (1 per drive)

1шт.

5

815444C2

BRACKET

- chain tightener, right (1 per drive)

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), (1 per bracket) 3/16" x 1"

1шт.

21782R1

WASHER

- 21/32 x 1-1/2 x 3/64 inch (1 per bracket)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (2 per bracket)

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - fertilizer feedshaft drive (See Note A) (1 per fertilizer drive)

1шт.

7

815454C1

DRIVE SPROCKET

SPROCKET - fertilizer feedshaft driven 12 tooth (1 per drive)

1шт.

8

819458C1

DRIVE SPROCKET

SPROCKET - chain tightener 8 tooth (1 per drive)

1шт.

9

4A

SPRING

- tightener bar return (1 per drive)

1шт.

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

10

815461C1

BAR

- return spring anchor (1 per drive) NOTE A: For service order 25 links from bulk 569088R91 chain (10 ft. roll) and 1-457113R91 conecting link and 1 -457114R91 offset link.

1шт.
