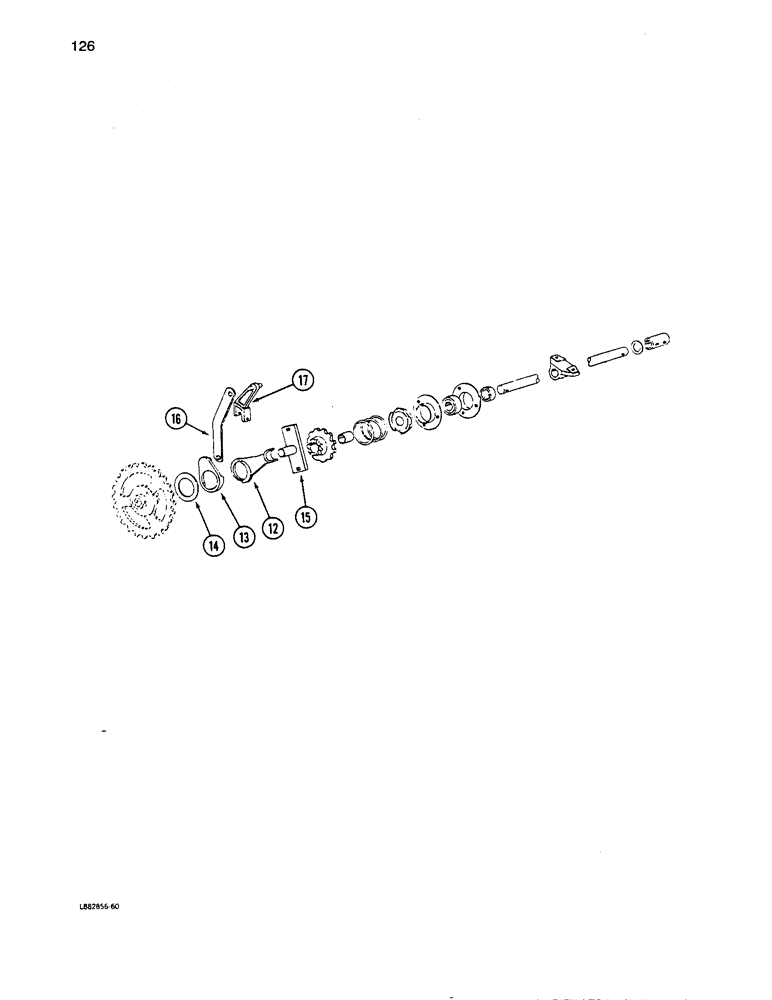

Запчасти Case IH 5100 (126) - GRAIN DRIVE, CONTD

12

815128C1

CAM

- fixed, left

1шт.

12

815129C1

CAM

- fixed, right

1шт.

13

815130C1

CAM

- rotating, left

1шт.

13

815131C1

CAM

- rotating, right

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.

14

815132C1

WASHER,60.45mm ID x 95.25mm OD x 1.9mm Thk

- cam

2шт.

15

815133C1

SUPPORT

BRACKET - cam stop

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

16

815136C1

SUPPORT

- clutch actuating

2шт.

17

815137C1

ARM

- clutch shifter

2шт.

27443R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 2-1/4

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

178374R1

WASHER

- flat, 17/32 x 1-1/4 x 3/64 inch

2шт.
