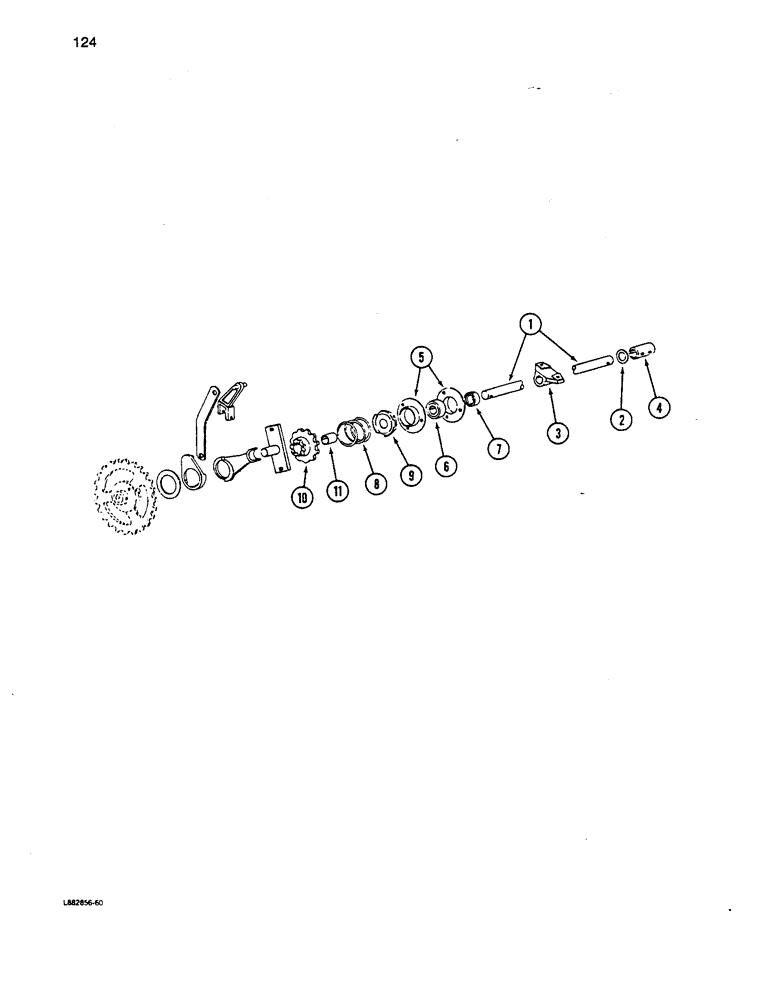

Запчасти Case IH 5100 (124) - GRAIN DRIVE

1

815116C2

ROD

SHAFT - drive, power lift (13 x 7)

1шт.

1

815117C2

ROD

SHAFT - drive, power lift (16 x 7)

1шт.

1

815118C2

ROD

SHAFT - drive, power lift (18 x 7 and 16 x 8)

2шт.

1

815120C1

SHAFT

- drive, power lift (20 x 8 and 16 x 10)

2шт.

1

818099C1

ROD

SHAFT - drive, power lift, left (20 x 6)

1шт.

1

815118C2

ROD

SHAFT - drive, power lift, right ( 20 x 6)

1шт.

1

818098C1

STEM

SHAFT - drive, power lift, left (24 x 6)

1шт.

1

815119C2

ROD

SHAFT - drive, power lift, left (21 x 7)

1шт.

1

815119C2

ROD

SHAFT - drive, power lift, right (24 x 6 and 21 x 7)

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), (1 per shaft) 3/16" x 1 1/2"

1шт.

2

20885R1

WASHER

- flat, 1-5/32 x 2 x 35/64 inch (1 per drive)

1шт.

3

815122C1

BRACKET

BEARING - drive shaft inner (1 per drive)

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING - grease, 1/8 inch x 90 degree

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(2 per drive) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (2 per drive) 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

(2 per drive) 3/8"-16, G5

1шт.

4

815121C1

SPACER

- drive shaft(24x6,21 x 7,20x8 and 16x 10)

2шт.

Ref #4 - changed spacer to (UAR) use washer 21226R1 11/22/95

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER - bearing

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- drive shaft outer

2шт.

7

557115R11

COLLAR

COLLAR ASSEMBLY - bearing

2шт.

NLS

NO LONGER SERVICED

SCREW - headless cup point, 5/16 NCx 5/16 inch

1шт.

8

815124C1

SPRING

- clutch

2шт.

9

815123C1

THRUST WASHER,68.58mm ID x 82.55mm OD x 1.52mm Thk

- clutch spring thrust

2шт.

10

815125C11

DRIVEN SPROCKET

SPROCKET ASSEMBLY - clutch left (Includes Ref. 1 1)

1шт.

10

815126C11

DRIVE SPROCKET

SPROCKET ASSEMBLY - clutch right. 1

1шт.

11

815127C1

BUSHING

- clutch sprocket

1шт.
