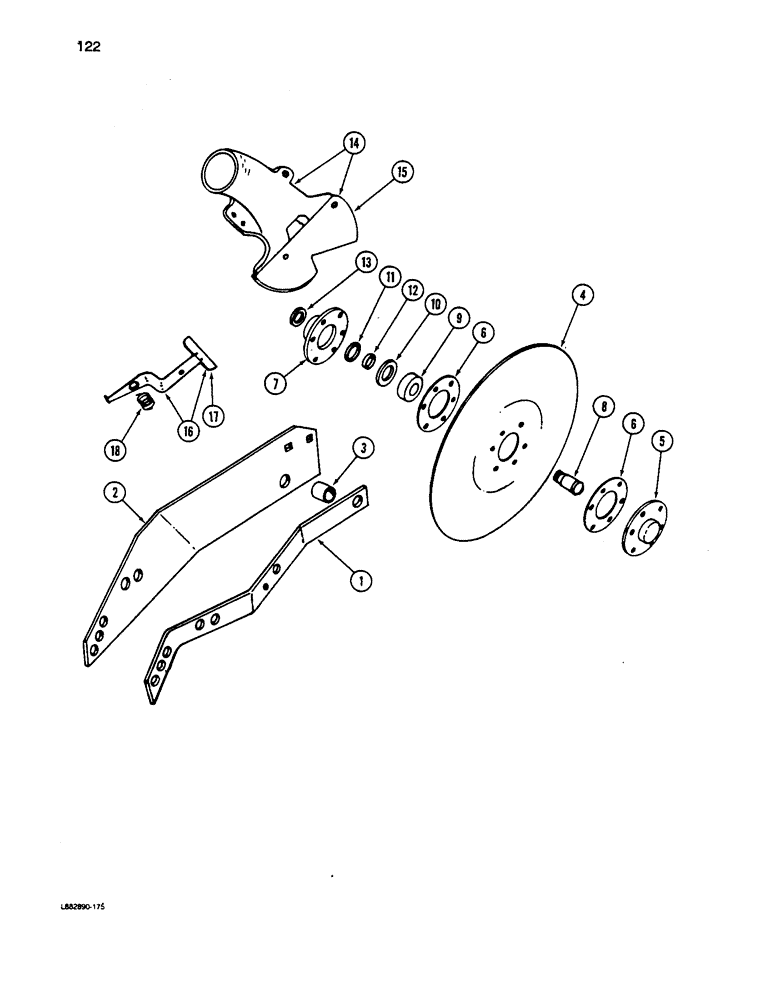

Запчасти Case IH 5100 (122) - SEPARATE PLACEMENT FURROW OPENER

1

819355C1

DRAWBAR

- single disc, left

1шт.

1

819356C1

DRAWBAR

- single disc, right

1шт.

2

819357C1

DRAWBAR

- single disc, left

1шт.

2

819358C1

DRAWBAR

- single disc, right

1шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

3

P13335

SPACER,1/2" Pipe x 2 1/2"

- double disc drawbar

2шт.

603005R92

DISC

OPENER ASSY, IH GRAIN DRILL - single

1шт.

4

603004R2

PLOW DISC

DISC - furrow opener single

1шт.

5

602990R1

CAP

- disc

1шт.

6

602992R1

GASKET

- retainer

2шт.

7

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

- 1/4 x 1/2 inch

6шт.

8

602987R1

BOLT

BOLT - disc

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-110

- hex, 5/8 inch NF

1шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

ASSEMBLY - disc

1шт.

10

602994R1

FLANGE

- dirt seal

1шт.

11

464628R1

SEAL

- dirt, (Replaces 602993R1)

1шт.

12

602988R1

SPACER

- dirt seal retainer

1шт.

13

591714R1

WASHER

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

14

594249R91

BOOT

ASSEMBLY - deep seeding notched landside left

1шт.

14

594250R91

BOOT

ASSEMBLY - deep seeding notched landside right

1шт.

15

606154R1

LANDSIDE

- deep seeding notched, left

1шт.

15

606155R1

LANDSIDE

- deep seeding notched, right

1шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

- turss head 5/16 x 5/8

4шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT - round head square neck 3/8 NC x 1-1/2 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

106913

RIVET,Truss Hd, 5/16" x 5/8"

- truss head 5/16 x 5/8 inch

2шт.

16

603620R11

BLADE

SCRAPPER ASSEMBLY single disc, left

1шт.

16

603621R11

PACKAGE

SCRAPPER ASSEMBLY - single disc, right

1шт.

17

W7008

BLADE

- disc scraper

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

2шт.

W4435

PIN

- headed, 3/8 x 1-3/8 inch

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

18

N32176

SPRING

- scraper

1шт.
