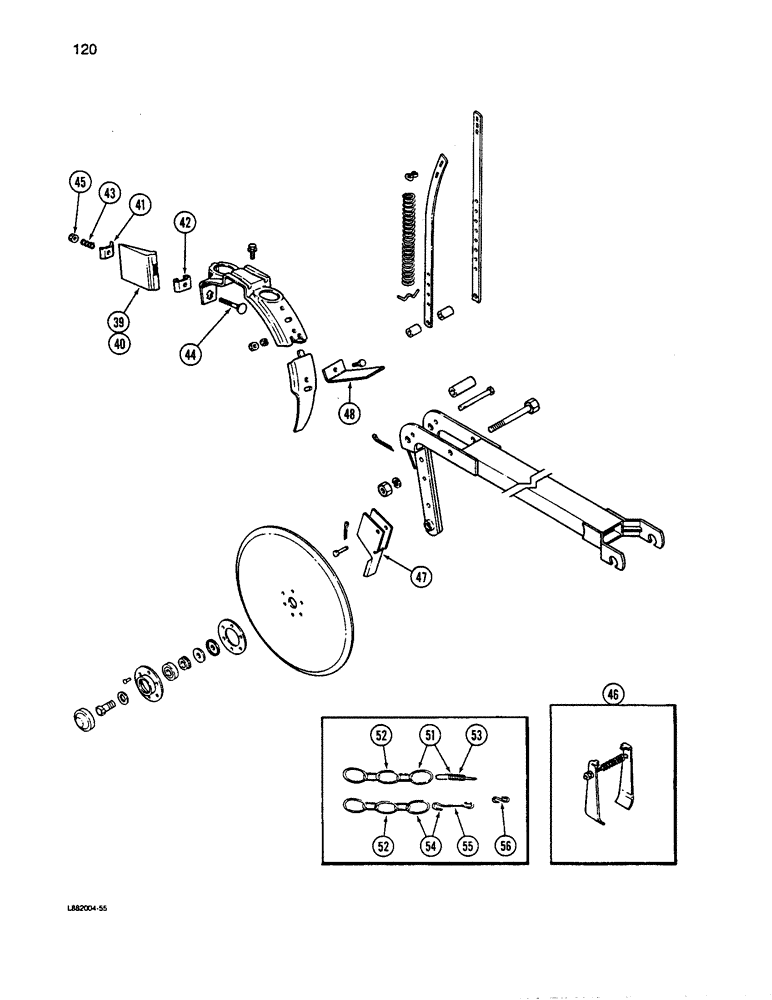

Запчасти Case IH 5100 (120) - DOUBLE DISC FURROW OPENER, CONTD

843364C91

BLADE

SCRAPER ASSEMBLY - disc

1шт.

39

NSS

NOT SOLD SEPARAT

SCRAPER - disc, right

1шт.

40

NSS

NOT SOLD SEPARAT

SCRAPER - disc, left

1шт.

41

816668C1

LEDGER PLATE

SPREADER - scraper

1шт.

42

819808C1

HINGE

- scraper

1шт.

43

N62536

VALVE SPRING

SPRING - scaper

1шт.

44

27445R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 2-3/4 inch

1шт.

45

230-4115

LOCK NUT,5/16"-18, GA

- hex lock, 5/16 inch NC

1шт.

46

819373C1

PACKAGE

BLADE ASSEMBLY - disc

1шт.

47

81920BC1

DEFLECTOR - fertilizer (Use with separate delivery tube)

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

48

843191C1

SUPPORT

- boot reinforcing

1шт.

51

NA22821

CHAIN (CE)

CHAIN ASSEMBLY - end drag

4шт.

52

601565R91

CHAIN (AG)

CHAIN - drag

1шт.

53

N42089

COIL SPRING

SPRING - drag chain

1шт.

54

NA10643

CHAIN (AG)

CHAIN ASSEMBLY - intermediate drag

1шт.

601565R91

CHAIN (AG)

CHAIN - drag (See Ref. 52)

1шт.

55

N11031

LINK, CONNECTING

LINK - drag chain

1шт.

56

W3767

LINK, CONNECTING

LINK drag chain (Use with double disc furrow opener)

1шт.
