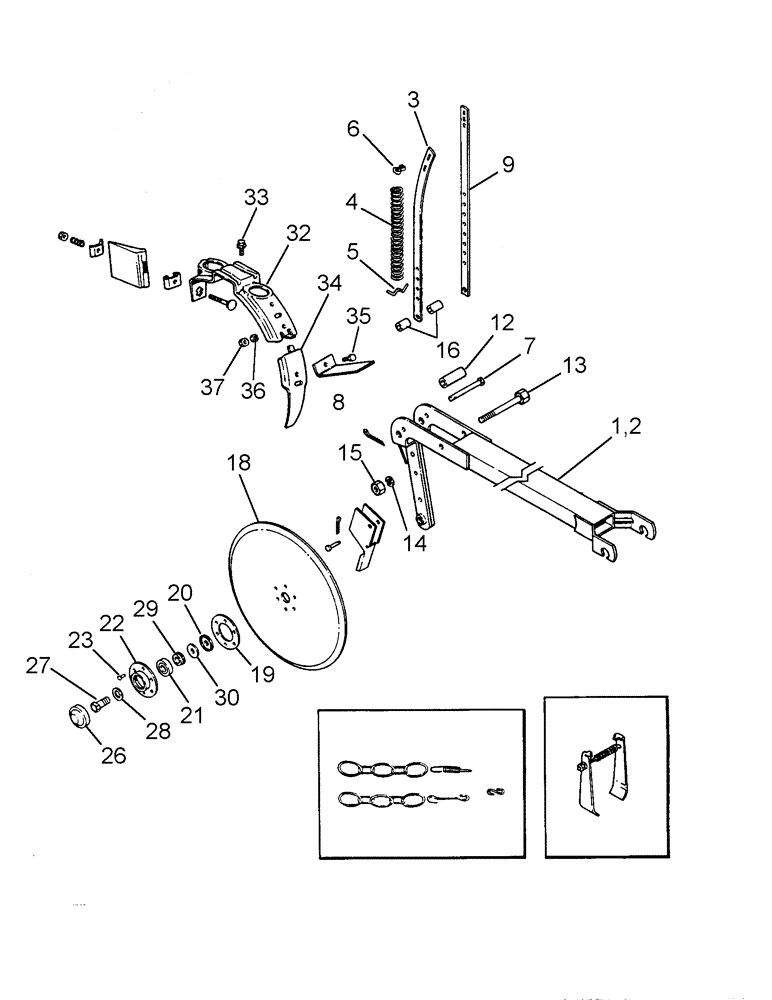

Запчасти Case IH 5100 (118) - DOUBLE DISC FURROW OPENER

1

819820C1

BAR

DRAWBAR - furrow opener, front

1шт.

2

819821C1

BAR

DRAWBAR - furrow opener, rear

1шт.

3

819349C1

BAR

- pressure spring front, rank

1шт.

4

6626-1

SPRING

- pressure

1шт.

5

F6366

LOCK

- pressure spring

1шт.

6

605964R1

CLIP

- special

1шт.

7

J623

HEADED PIN,9.53mm OD x 88.9mm L

PIN - c1evis

1шт.

8

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

9

819347C1

BAR

- pressure spring rear, rank

1шт.

12

1263794C1

SPACER

Drawbar

2шт.

13

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

16

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

- 3/8 x 1-1/16 inch

2шт.

603020R92

DISK HARROW

OPENER ASSY, IH GRAIN DRILL

2шт.

18

603013R2

PLOW DISC

DISC - furrow opener

2шт.

19

602992R1

GASKET

- disc

1шт.

20

602994R1

FLANGE

- seal

1шт.

21

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- disc

1шт.

22

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

- bearing

1шт.

23

104081

RIVET,But Hd, 1/4" x 1/2"

- 1/4x 1/2 inch

6шт.

26

603012R1

DUST CAP

CAP - dust

2шт.

27

603010R1

BOLT (SPREADER)

BOLT - disc retaining, left

1шт.

27

603011R1

BOLT (SPREADER)

BOLT - disc retaining, right (Shown)

1шт.

28

141706

WASHER

- internal shakeproof, 11/16 inch

2шт.

29

602988R1

SPACER

- seal retainer

2шт.

30

464628R1

SEAL

- dirt

2шт.

32

819280C2

BOOT

- disc

1шт.

33

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

BOLT - hex washer head, 5/16 NC x 1 inch

2шт.

34

819281C2

GUARD ASSY.

GUARD - boot

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

36

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

37

120376

NUT,5/16"-18, G5

1шт.
