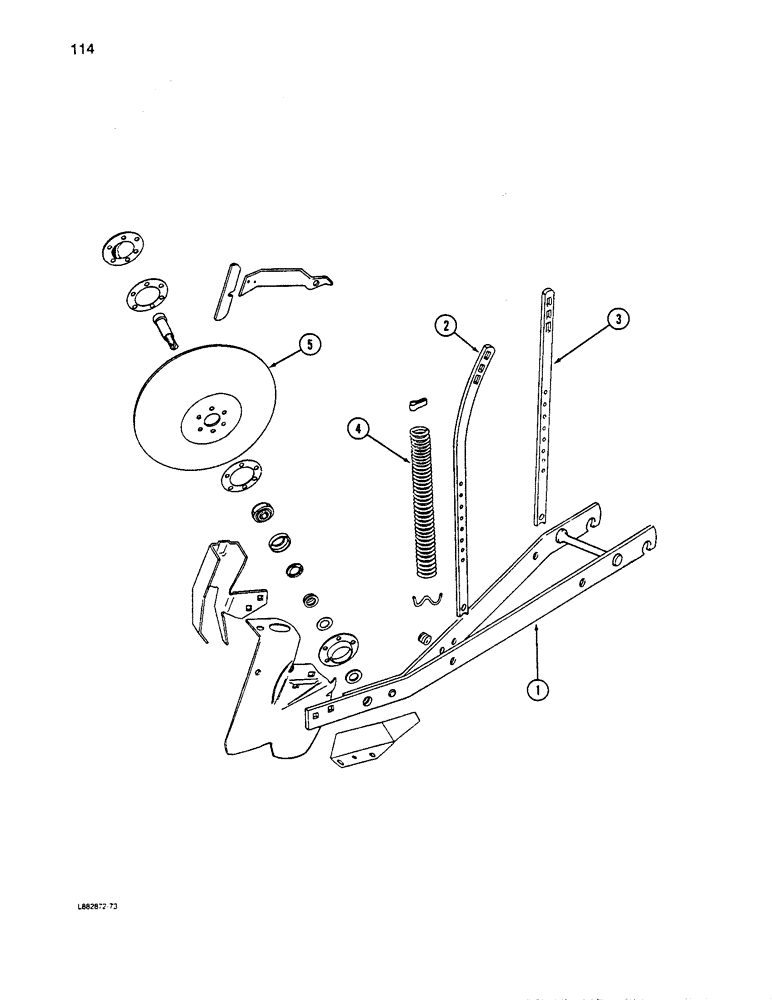

Запчасти Case IH 5100 (114) - SINGLE DISC FURROW OPENER

1

815470C1

DRAWBAR

- front, left

1шт.

1

815471C1

BAR

DRAWBAR - front, right

1шт.

1

815472C1

DRAWBAR

- rear, left

1шт.

1

815473C1

BAR

DRAWBAR - rear, right

1шт.

1

816748C1

BAR

DRAWBAR - front, left (See,Note B)

1шт.

1

816749C1

BAR

DRAWBAR - front right (See Note B)

1шт.

1

816754C1

BAR

DRAWBAR - rear, left (See Note B)

1шт.

1

816755C1

DRAWBAR

- rear, right (See Note B)

1шт.

1

840921C1

DRAWBAR

- front, left (See Note C)

1шт.

1

840922C1

DRAWBAR

- front, right (See Note C)

1шт.

1

840915C1

DRAWBAR

- rear, left (See Note C)

1шт.

1

840916C1

DRAWBAR

- rear, right (See Note C)

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

- truss head, 3/8 x 1 inch

1шт.

2

815482C1

BAR

BAR - pressure spring

1шт.

2

816756C2

BAR

- pressure spring L=23"

1шт.

603632R1

HEADED PIN,9.53mm OD x 76.2mm L

PIN - headed, 3/8 x 3 inch

1шт.

177923

COTTER PIN

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

2

840927C1

BAR

- pressure spring front L=25.98

1шт.

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

816757C1

BAR

- pressure spring rear

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN - plain head, 3/8 x 2-5/8 inch

1шт.

177923

COTTER PIN

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

840928C1

BAR

- pressure spring rear (See Note C)

1шт.

21878R1

HEADED PIN,3/8" x 2 3/4"

PIN - headed, 3/8 x 2-3/4 inch

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

6638-1

SPRING

- pressure bar

1шт.

4

6626-1

SPRING

- pressure bar (For drills used in England)

1шт.

5

603004R2

PLOW DISC

DISC - furrow opener single NOTE A: Quantities are for one unit. NOTE B: For drills with 20 inch wheels shipped to England. NOTE C: For drills with 28 inch wheels, Serial Range: shipped-England.

1шт.
