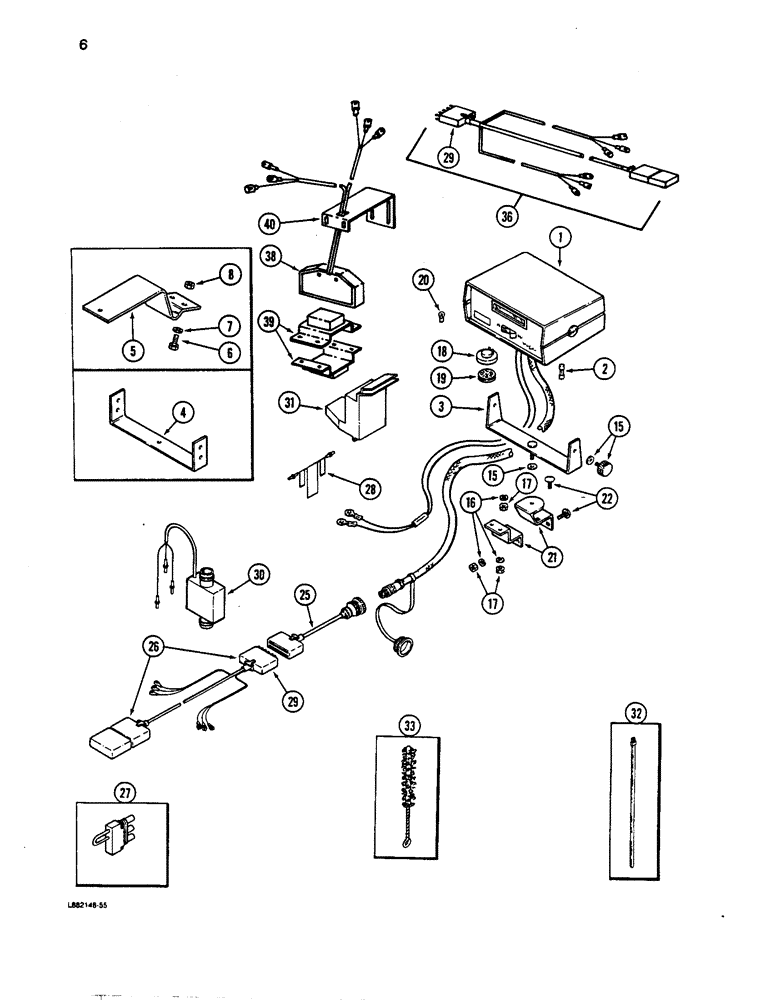

Запчасти Case IH 5100 (006) - PLANTING MONITOR, SEED FLOW II

1

245821C91

CONSOLE

MONITOR - Seed Flow II

1шт.

2

9426337

FUSE,3 Amp, Type 3AG

- 3 ampere

1шт.

3

1261523C91

BRACKET

- mounting

1шт.

5

90905C1

SUPPORT

BRACKET - mounting (J I Case Tractor)

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

1261524C91

REPAIR KIT

KNOB KIT - (Includes 2 knobs and 3 washers)

1шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

1261548C1

ALARM

- monitor

1шт.

19

1261549C1

DAMPER

- alarm

1шт.

20

58554C1

BULB,C2F, #1892, 14V

- light, No. 1892

1шт.

21

1261522C91

BRACKET, SUPPORTING

BRACKET SET - mounting

1шт.

22

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

25

90925C1

CABLE

HARNESS - monitor adapter

1шт.

26

819974C91

HARNESS

monitor, 12 contact plug

1шт.

26

819975C91

HARNESS

- monitor, 10 contact plug

1шт.

27

245617C1

CONNECTOR,ELECTRIC

CABLE - shortening

1шт.

28

58557C1

ELECTRICAL WIRE

WIRE - shortening

1шт.

29

128813C1

CONNECTOR,ELECTRIC

CONNECTOR - male connection plug

1шт.

30

819971C91

SENSOR

- seed

1шт.

31

841109C1

SHIELD

-light

1шт.

32

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining, 7 inch long

7шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

2шт.

33

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

36

843408C91

HARNESS

- extension cable, two drill hitch

1шт.

819972C91

SENSOR

KIT - granular shaft sensor

1шт.

38

81

DISC

SENSOR ASSEMBLY - shaft rotation

1шт.

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

4шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW - pan head cross recess, No. 8 x 1/2 inch

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

39

818368C91

MAGNET

- feed shaft

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

- round head slotted, No. 4 x 5/16 inch

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

225-14104

NUT,#4-40

- mach screw, No. 4

2шт.

40

818369C91

BRACKET

- sensor feed shaft

1шт.

450644

BEARING ASSY,50 mm ID x 110 mm OD x 27 mm

- hex mach, No. 8 x 3/8 inch

2шт.

NLS

NO LONGER SERVICED

- flat, 3/16 x 7/16 x 1/32 inch

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120622

NUT,#8-32

2шт.
