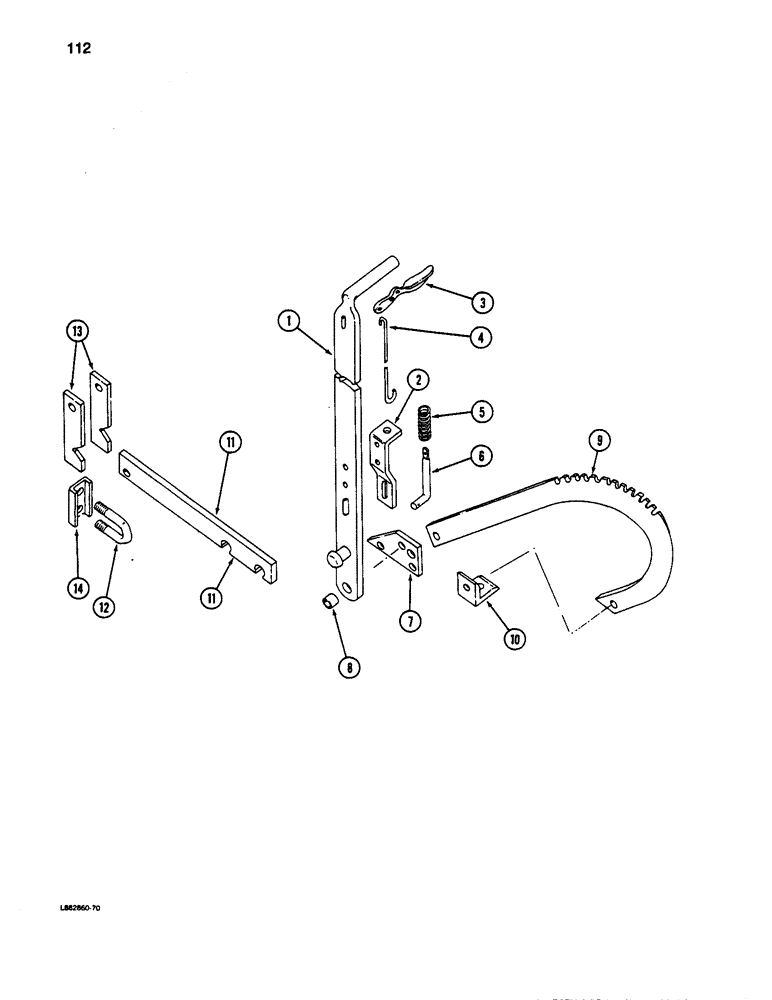

Запчасти Case IH 5100 (112) - HAND LIFT

1

606059R91

LEVER ASSY.

LEVER ASSEMBLY - hand lift

1шт.

2

606148R1

LEVER GUIDE

GUIDE - lever

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

- button head, 5/16 x 1-1/8 inch

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

20601R1

WASHER

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

3

PO15296

HANDLE

- lever

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

4

604434R1

ROD

- detent

1шт.

5

2302

SPRING

- detent

1шт.

6

M92872

LIFTING ROD

ROD - hand lift

1шт.

178374R1

WASHER

- 17/32 x 1-1/4 x 3/64 inch

2шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

7

815521C1

BAR

- hand lift lever pivot

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

373080R1

SPACER,1/2" Pipe x 1/2"

- lever pivot

1шт.

9

815522C1

PIVOT PLATE

SECTOR - hand lift

1шт.

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

815523C1

ANGLE

SUPPORT - angle, sector

1шт.

11

815524C1

BAR

- lift adjusting

1шт.

12

603392R1

BOLT,U, 5/8" - 11 x 3 9/16"

U-BOLT - clamp

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

13

BAR - rockshaft lift

2шт.

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-23/32 inch

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21782R1

WASHER

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

14

603393R1

CHANNEL

- lift arm clamping

1шт.
