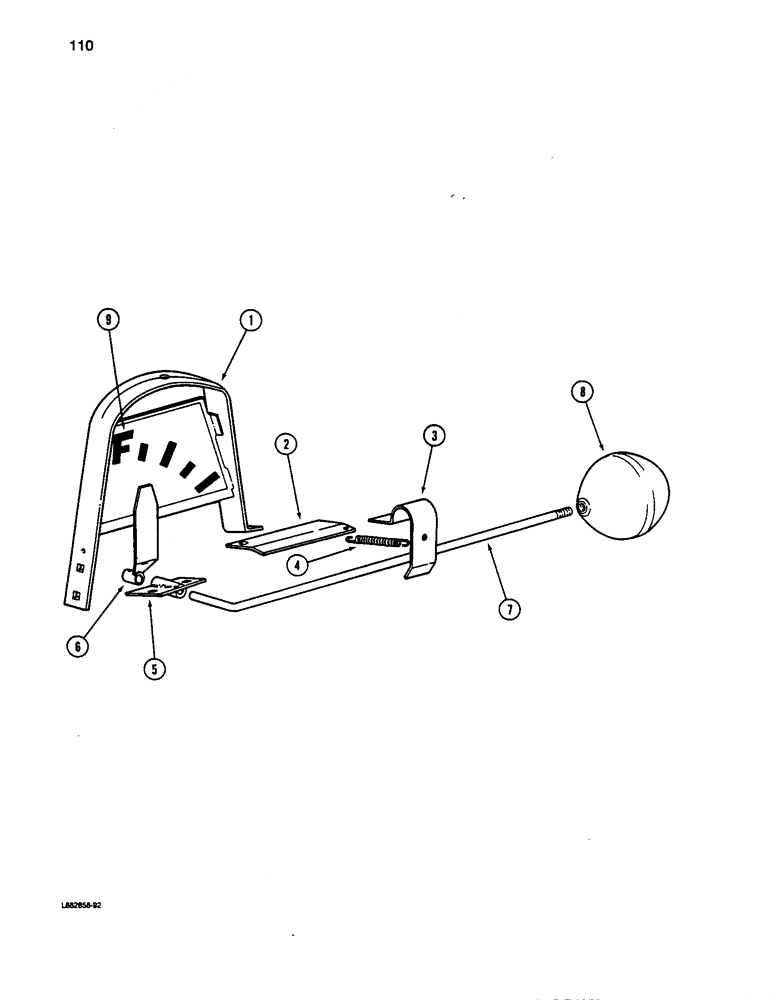

Запчасти Case IH 5100 (110) - FERTILIZER LEVEL INDICATOR

1

816846C1

PLATE

INDICATOR - level

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

2

816802C1

SUPPORT

- level indicator

1шт.

3

816801C1

CLAMP

- level indicator

1шт.

4

N62683

SPRING

- indicator clamp

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

5

815793C1

ARM

SWIVEL - float arm

1шт.

6

815795C1

INDICATOR

POINTER - fertilizer level

1шт.

24519R1

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - hex socket head, No. 10-2 x 1/4 inch

1шт.

7

815798C1

ROD

- float

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

8

815799C1

BALL

- float level

1шт.

9

2753805R1

DECAL

- fertilizer level

1шт.
