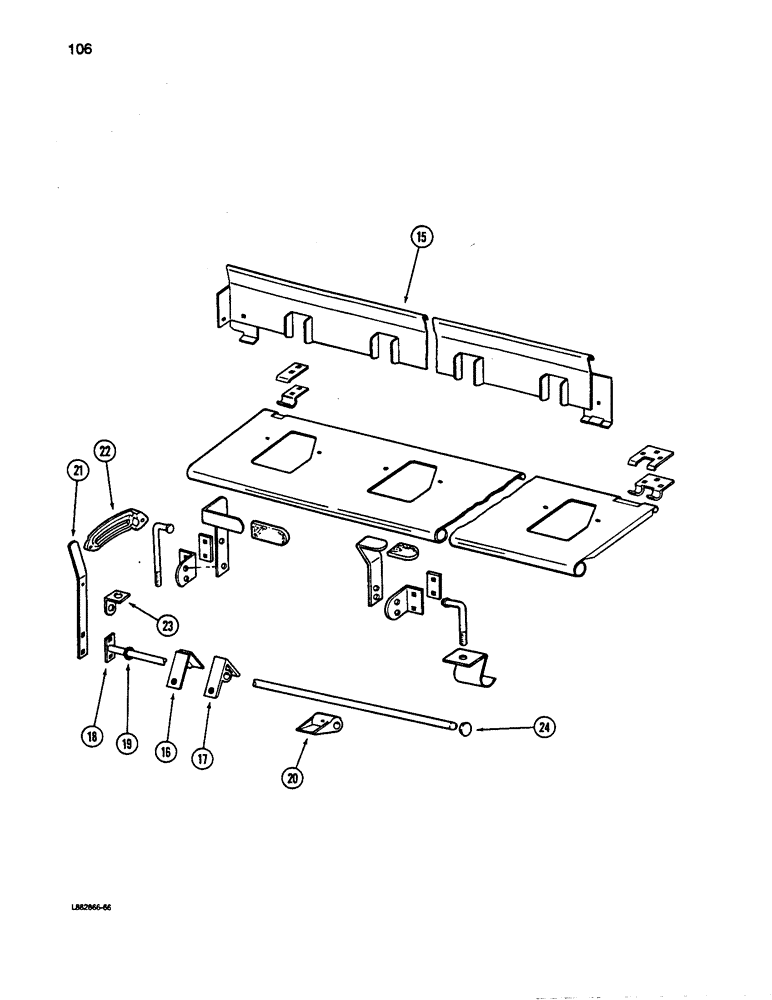

Запчасти Case IH 5100 (106) - FERTILIZER DROP BOTTOM, CONTD

15

815402C1

PANEL

ASSEMBLY - back (13 x 7)

1шт.

15

815851C1

PANEL

ASSEMBLY - back (16 x 7)

1шт.

15

815404C1

PANEL

ASSEMBLY - back, left (18 x 7)

1шт.

15

815405C1

PANEL

ASSEMBLY - back, right (18 x 7)

1шт.

15

815406C1

PANEL

ASSEMBLY - back, left (20 x 6)

1шт.

15

815407C1

PANEL

ASSEMBLY - back, right (20 x 6)

1шт.

15

815408C1

PANEL

ASSEMBLY - back, left (24 x 6)

1шт.

15

815409C1

PANEL

ASSEMBLY - back, right (24 x 6)

1шт.

15

815410C1

PANEL ASSY.

PANEL ASSEMBLY - back, left (16 x 8)

1шт.

15

815411C1

PANEL ASSY.

PANEL ASSEMBLY - back, right (16 x 8)

1шт.

15

815412C1

PANEL ASSY.

PANEL ASSEMBLY - back, left (20 x 8)

1шт.

15

815413C1

PANEL ASSY.

PANEL ASSEMBLY - back, right (20 x 8)

1шт.

15

815414C1

PANEL ASSY.

PANEL ASSEMBLY - back, left (16 x 10)

1шт.

15

815415C1

PANEL ASSY.

PANEL ASSEMBLY - back, right (16 x 10)

1шт.

15

816720C1

PANEL

ASSEMBLY - back, left (21 x 7)

1шт.

15

816721C1

PANEL

ASSEMBLY - back, right (21 x 7)

1шт.

16

607276R2

SUPPORT

BEARING - gate rod (5 used 13 x 7; 7 used 16 x 7; 8 used 20 x 6, 24x6,18x7,21x7and 16xB; 10used20xB and 16x10)

1шт.

17

603455R1

LEVER GUIDE

BEARING - gate rod center (20 x 6, 24 x 6, 18 x 7, 21 x 7, 16 x 8, 20x8and16x10)

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - round head,square neck, 1/4 NC x 1/2 inch (1 per bearing)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch (1 per bearing)

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch (1 per bearing)

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

18

815392C1

ROD

ASSEMBLY - gate (13 x 7)

1шт.

18

815394C1

ROD

ASSEMBLY - gate (16 x 7)

1шт.

18

815396C1

ROD

ASSEMBLY- gate (20x6, 18x7 and 16x,8)

2шт.

18

815398C1

ROD

ASSEMBLY - gate (24 x 6)

2шт.

18

815400C1

ROD ASSY.

ROD ASSEMBLY - gate (20 x 8 and 16 x 10)

2шт.

1b

816716C1

ROD

ASSEMBLY - gate, left (21 x 7)

1шт.

18

816717C1

ROD

ASSEMBLY - gate, right (21 x 7)

1шт.

19

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- fertilizer gate rod (1 per rod)

1шт.

20

816736C1

GATE ASSY

GATE - fertilizer feed

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

21

605116R1

LEVER

- fertilizer indicator (1 per drive)

1шт.

598795R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - round head square neck, 1/4 NC x 3/4 inch (2 per lever)

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch (1 per lever)

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch (1 per lever)

1шт.

22

604128R1

INDICATOR

- feed, left (1 per feed)

1шт.

22

604129R1

INDICATOR

- feed, right (1 per feed)

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(2 per indicator) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

23

815380C1

ANGLE

- drop bottom long lever (1 per drive)

1шт.

O3534

PIN - headed 3/8 x 1-3/B inch (1 per angle)

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

1шт.

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

1шт.

24

816848C1

PLUG

- gate rod hopper end (13 x 7 and 16x 7)

1шт.
